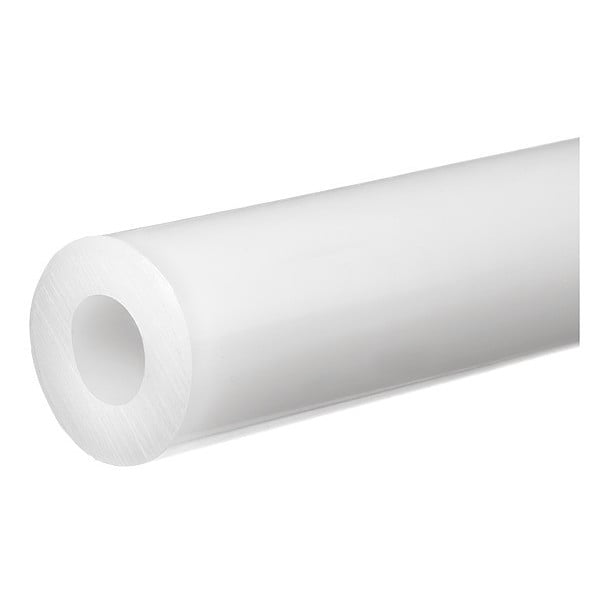

Tubing, PTFE, 3/4" I.D., 7/8" O.D.

  • Mfr # ZUSA-HT-3432

  • Zoro # G8345076

product price:  $43.79
/ea

Key Features

Tube Material
PTFE
Tube Hardness
Shore D: 65
Inside Dia.
3/4 in
Outside Dia.
7/8 in
Wall Thickness
0.063 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZUSA-HT-3432
Zoro #
G8345076
UPC #
193005973353
Country of Origin
China

Dimensions

Inside Dia.
3/4 in
Outside Dia.
7/8 in
Wall Thickness
0.063 in
Tube Length
2 ft
Tube Bend Radius
16 3/16 in
Bend Radius
16 3/16 in
Overall Length
2 ft
Inside Diameter
3/4 in
Outside Diameter
7/8 in

Details

Tube Material
PTFE
Tube Hardness
Shore D: 65
Max. Pressure
70 psi
Tube Color
White
Item
Tubing
Temp. Range
-150 Degrees to 500 Degrees F
Max. Working Pressure @ 73 F
70 psi
Standards
3-A 20-27, FDA
Reinforcement
Not Reinforced
Maximum Operating Temperature
500 Degrees F
Autoclavable
Yes
Hardness
Shore D 65
Stripe Color
No Stripe
Minimum Operating Temperature
-150 Degrees F
Flexibility
Rigid
For Environment
Chemical, High Temperature
Fitting Compatibility
Compression, Push-to-Connect
Beverage, Food, and Water Compatibility
Beer, Citric Acid, Dairy, Distilled Water, Glycerin, Linseed Oil, Milk, Non-Potable Water, Potable Water, Salt Water, Vinegar
Color
White
Jacket Material
No Jacket
For Fluid Type
Beverages
Chemical Compatibility
Application
Beverage, Chemical, Food, Water
Tube Form
Coil
Peristaltic Pump Compatible
No
Clarity
Semi-Clear
Resistance Properties
Chemical Resistant, High Temperature Resistant
Vacuum Rated
Not Rated for Vacuum
Jacket Color
No Jacket
System of Measurement
Inch
Material
PTFE
Flow Application
Food and Beverage
Maximum Operating Pressure
70 psi
Food and Beverage Compatibility
Beer, Citric Acid, Dairy, Distilled Water, Glycerin, Linseed Oil, Milk, Non-Potable Water, Potable Water, Salt Water, Vinegar
Durometer
65D
Grade
Food Grade

Description

Tubing, Application Beverage, Chemical, Food, Water, Color White, Hardness Shore D 65, Inside Diameter 3/4 in, Jacket Color No Jacket, Jacket Material No Jacket, Material PTFE, Material Trade Name Not Applicable, Material Trade Number Not Applicable, Maximum Operating Pressure 70 psi, Maximum Operating Temperature 500 Degrees F, Outside Diameter 7/8 in, Overall Length 2 ft, Peristaltic Pump Compatible No, PEX Type Not Applicable

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
