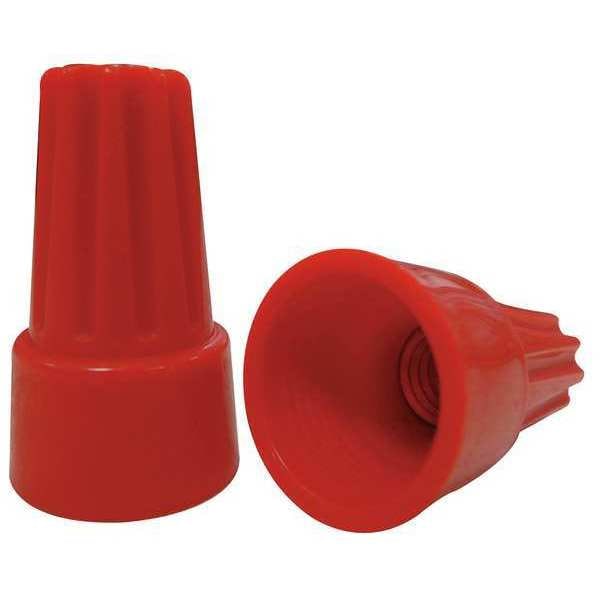

Twist-On Wire Connector, 10 AWG Max, Red, Thermoplastic Insulation, 600 V, 150 PK

  • Mfr # 5UYH9

  • Zoro # G1963491

product price:  $11.39
/pk 150, $0.08/ea

Key Features

Type
Twist-On
Color
Red
Insulation Material
Thermoplastic
Maximum Voltage
600 V
Minimum Wire Combination
(3) 18 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5UYH9
Zoro #
G1963491
UPC #
190735599754
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
22 AWG
Height
0.94 in
Width
0.55 in
Strip Length
1/2 in
Outside Diameter
0.52 in
Overall Width
0.64 in
For Minimum Wire Size - Solid
22 AWG
Maximum Single Wire Size
10 AWG
Overall Height
1.04 in
Minimum Single Wire Size
22 AWG

Details

Item
Twist-On Wire Connector
Type
Twist-On
Color
Red
Insulation Material
Thermoplastic
Maximum Voltage
600 V
Minimum Wire Combination
(3) 18 AWG
Maximum Wire Combination
(2) 10 AWG with (2) 12 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
RoHS Compliant
Yes
Wire Connector Style
Standard
Series
P6
Standards
CSA Certified: 175604UL Listed: E113650
Application
General Purpose
Maximum Conductors
9
For Conductor Material
Copper
Compatible with Product Type
Light Fixtures and House Wiring
Special Features
These General Purpose Twist-On Connectors Terminate or Extend Power and Ground Connections in Low-Voltage Applications Like Ceiling Fans, Appliances, and Outlets
Compatible Installation Tool Model Number
No. 4
Material
Steel
Termination Style
Twist-On
Contact Material
Steel

Description

Twist-On Wire Connectors, Color Red, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (3) 18 AWG, Maximum Wire Combination (2) 10 AWG with (2) 12 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 9, Standards CSA 175604, RoHS, UL E113650, Wire Connector Style Standard, Compatible Installation Tool Model Number No. 4, Compatible with Product Type Light Fixtures and House Wiring
