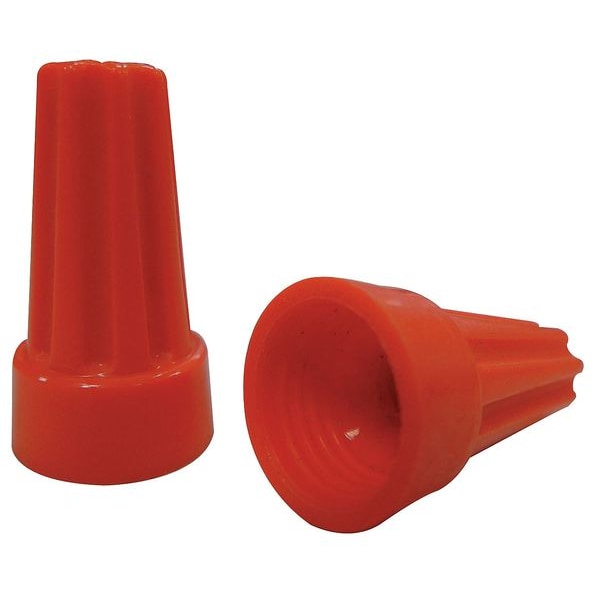

Twist-On Wire Connector, 14 AWG Max, Orange, Thermoplastic Insulation, 600 V, 300 PK
Mfr # 5UYH7
Zoro # G2476661
product price:Â
$
15.29
/pk of 300, $0.05/ea
Key Features
Type
Twist-On
Color
Orange
Insulation Material
Thermoplastic
Maximum Voltage
600 V
Minimum Wire Combination
(1) 18 AWG with (1) 20 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5UYH7
- Zoro #
- G2476661
- UPC #
- 190735599730
- Country of Origin
- China
Dimensions
- Maximum Wire Size
- 14 AWG
- Minimum Wire Size
- 22 AWG
- Width
- 0.48 in
- Height
- 0.69 in
- Strip Length
- 5/16 in
- Overall Width
- 0.5 in
- Outside Diameter
- 0.38 in
- Minimum Single Wire Size
- 22 AWG
- Overall Height
- 0.87 in
- Maximum Single Wire Size
- 14 AWG
Description
Twist On Wire Connector, Color Orange, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (1) 18 AWG with (1) 20 AWG, Maximum Wire Combination (4) 16 AWG with (1) 20 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 5, Standards CSA Certified: 175604UL Listed: E113650, Wire Connector Style Standard, Compatible Installation Tool Model Number No. 3
