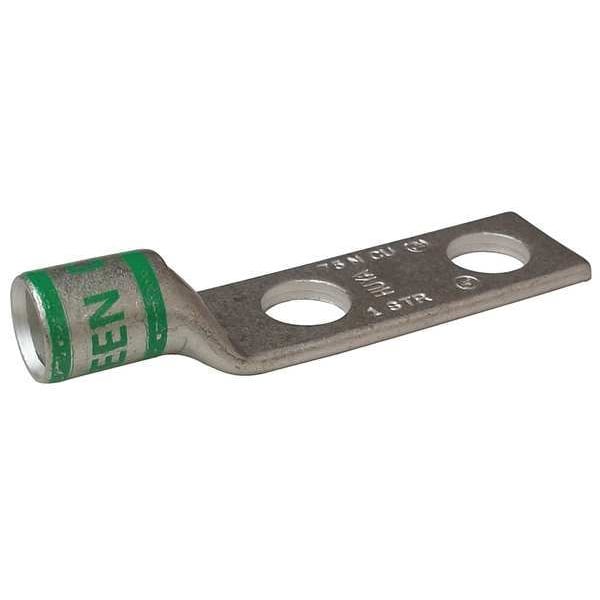

Two-Hole Compression Lug, 1 AWG Max, 1/2 in Stud, Short Barrel, Copper, Green
Mfr # 24D018
Zoro # G5206415
product price: $4.35
/eaKey Features
For Wire Size
1 AWG
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Short
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
24D018
Zoro #
G5206415
UPC #
190735434284
Country of Origin
China
Dimensions
For Wire Size
1 AWG
For Stud Size
1/2 in
Barrel Size
Short
Tongue Width
0.75 in
Cable Size
1 AWG
Barrel Length
Short
Length
4.17"
Width
3/4"
Length (Straight Wireway)
4.17 in
Overall Width
0.75 in
Tongue Thickness
0.12 in
Overall Length
4.17 in
Tongue Length
3.01 in
For Stranded Copper Wire Size - Maximum
1 AWG
Barrel Inside Diameter
0.36 in
Hole Size
0.53 in
Strip Length
15/16 in
For Stranded Copper Wire Size - Minimum
1 AWG
Barrel Outside Diameter
0.48 in
Description
Two-Hole Lug Compression Connector, Barrel Size Short, Color Code Green, Die Code 37, Tongue Angle Straight, Tongue Width 0.75 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 1 AWG, For Stranded Copper Wire Size - Maximum 1 AWG, Inspection Hole Yes, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed
