  9. Vacuum Gauge, Liquid Filled, 2-1/2 In, Case Color: Silver

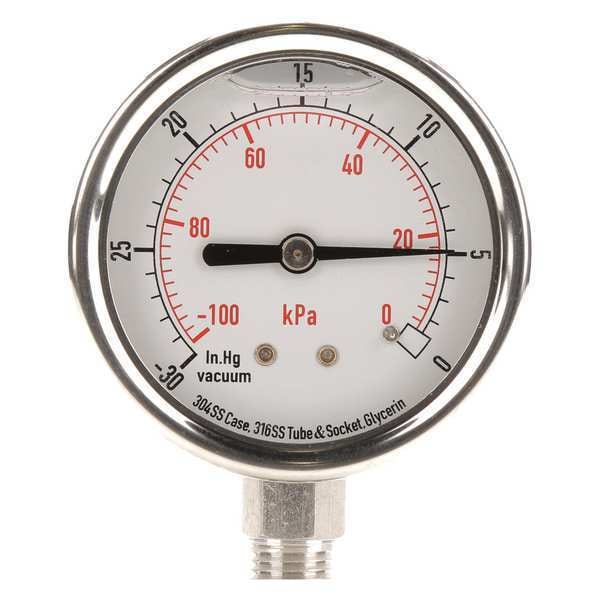

Zoro Select Vacuum Gauge, Liquid Filled, 2-1/2 In, Case Color: Silver 4CFG9 - main

Vacuum Gauge, Liquid Filled, 2-1/2 In, Case Color: Silver

  • Mfr # 4CFG9

  • Zoro # G0041632

product price: $34.29
/ea

Key Features

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
Corrosion-Resistant Case
Liquid Filled
Yes
Gauge Nominal Dial Size
2 1/2 in
Basic Gauge Case Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4CFG9
Zoro #
G0041632
UPC #
190735501900
Country of Origin
China

Dimensions

Gauge Nominal Dial Size
2 1/2 in
Gauge Connection Size
1/4 in
Connection Size
1/4 in NPT
Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
Corrosion-Resistant Case
Liquid Filled
Yes
Basic Gauge Case Material
Stainless Steel
Basic Gauge Wetted Parts
Stainless Steel
Gauge Connection Type
MNPT
Gauge Connection Location
Bottom
Gauge Primary Range Units
in Hg
Gauge Secondary Range Units
kPa
Basic Gauge Sensor Material
Stainless Steel
Gauge Lens Material
Acrylic
Gauge Panel Mountable
No
Basic Gauge Lens Material
Plastic
Connection Location
Lower
Basic Gauge Socket Material
Stainless Steel
Gauge Filled With
Glycerin
Calibration Certificate Included
No
Gauge Primary Range Values
-30 to 0
Smallest Graduation
1 in Hg
Gauge Socket Material
316 Stainless Steel
Gauge Case Material
304 Stainless Steel
Range
100 kPa Vac to 0, 30 in Hg Vac to 0
Item
Commercial Vacuum Gauge
Gauge Accuracy
+/-3-2-3%
Gauge Sensor Material
316 Stainless Steel
Case Color
Silver
Gauge Secondary Range Values
-100 to 0
Gauge Primary Range Smallest Graduation
1
Operating Temp. Range
-40 Degrees to 140 Degrees F
Gauge Case Color
Stainless Steel
Primary Scale Minor Graduations
1, 2
Scale Type
Dual
Lens Material
Acrylic
Accuracy
+/-3-2-3%
Cleaned for Oxygen Service
No
Removable Bezel
No
Bezel Material
Crimped Stainless Steel
Blowout Safety Back
No
Pressure Range Type
Vacuum
Includes Calibration Certificate
No
Primary Scale Units
in Hg
Non-Sparking
No
Panel-Mountable
No
Liquid-Filled Case
Yes
Primary Pressure Range
30 to 0
Secondary Scale Units
kPa
Field Fillable
No
Application
General Purpose
Sensor Material
316 Stainless Steel
Hazardous Location Rating
Not Rated
Gauge Case Liquid
Glycerin
Pressure Gauge Type
Commercial Pressure Gauge
Accuracy Scale
Mid-Scale
Secondary Pressure Range
-100 to 0 kPa
IP/NEMA Rating
Not Rated
Includes Mounting Hardware
No
Case Material
304 Stainless Steel
Process Connection Location
Bottom
Dial Color
White
Process Connection Type
NPT
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Process Connection Gender
Male
Socket Material
316 Stainless Steel
Freeze Resistant Movement
No
Includes Vent Plug
No
Dry Dampening Feature
None
Vibration Resistance
Liquid-Filled
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Operating Temperature - Maximum
140 Degrees F
Secondary Scale Vacuum Measurement - Maximum
0 kPa
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Secondary Scale Vacuum Measurement - Minimum
-100 kPa
Case Liquid
Glycerin

Description

Commercial Vacuum Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
