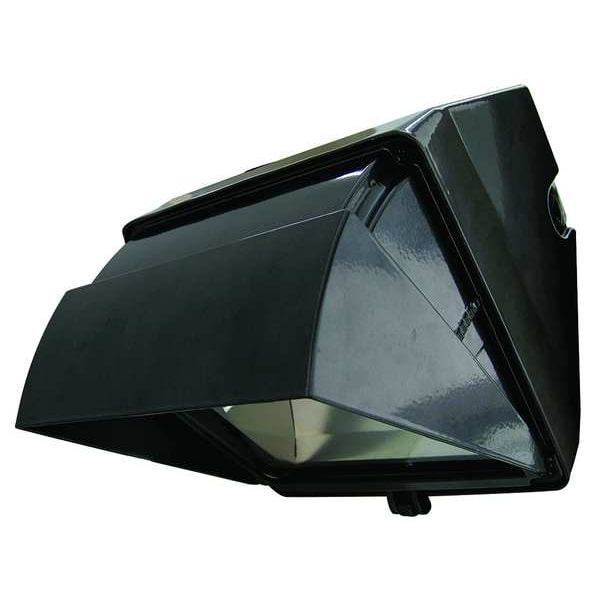

Wall Pack, HPS, 120 V, 100 W (Formerly LumaPro)

  • Mfr # 23Y141

  • Zoro # G7448551


product price: $142.99
/ea
Free Shipping & Returns

Key Features

Includes
Adjustable Glare Shield
Voltage
120V AC
Width
8 5/8 in
Height
11 7/8 in
Length
8 3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
23Y141
Zoro #
G7448551
UPC #
190735568613
Country of Origin
China

Dimensions

Width
8 5/8 in
Height
11 7/8 in
Length
8 3/8 in
Reflector Dia.
22*20.2cm
Fixture Width
8 5/8 in
Fixture Length
8 3/8 in
Fixture Height
11 7/8 in
Knockout Size
1/4 in
Hub Size
3/4 in NPT
Mounting Height - Maximum
15 ft
Manufacturers Warranty Length
1 yr
Overall Width
8 5/8 in
Overall Height
11 7/8 in
Mounting Height - Minimum
8 ft
Overall Length
8 3/8 in

Details

Includes
Adjustable Glare Shield
Item
Wall Pack
Voltage
120V AC
Light Technology
High Pressure Sodium
Fixture Sensor Type
No Sensor Included
Lumens
9,500 lm
Ambient Temp. Range
-22 Degrees to 122 Degrees F
Lamp Included / Lamp Not Included
Lamp Included
Fixture Housing Material
Die-Cast Aluminum
Suggested Lamp Item No.
4V604
Housing Material
Aluminum
Sensor Type - Fixtures
No Sensor Included
Light Distribution
Type III
Socket Type
Medium
Reflector Material
Aluminum
Lighting Certification
Unrated
Type - Wall Pack Fixtures
General Purpose
Lamp Type
High Pressure Sodium
Lamp Watts - Fixtures
100.0
Mounting
Directly to Wall or Junction Box
Max. Fixture Wattage
100.0
Standards
UL/cUL Listed for Wet Locations
Fixture Housing Color
Bronze
Fixture Rated Life
20,000 hr
Fixture Temp. Range
-22 Degrees to 122 Degrees F
Lamp Watts
100 W
Lens Type
Glass
Fixture Voltage
120
Fixture Lens Material
Glass
Special Features
Glare Shield
Light Distribution Shape
Type III
Fixture Mounting Location
Surface Mounts to Recessed Universal Junction Box
Color Temperature
2000K
Fixture Wattage
100 W
Color Rendering Index
22
Description/Special Features
Glare Shield
LED Replacement For
100W HPS/MH
Max. Operating Temp.
122 Degrees F
Includes Lamp
Lamp Included
Rated Life
20,000 hr
Min. Operating Temp.
-22 Degrees F
Power Source
Hardwired
Lumen Selectable
Not Selectable
Operating Temperature - Minimum
-22 Degrees F
Operating Temperature - Maximum
122 Degrees F
Metal Halide Wattage Equivalency
100 W
Number of Hubs
3
High Pressure Sodium Wattage Equivalency
100 W
Number of Knockouts
4
Color Selectable
Not Selectable
Light Output
9,500 lm
Sensor Type
Not Sensor Compatible
Incandescent Wattage Equivalency
750 W
For Location
Outdoor
Housing Color
Bronze
Finish
Bronze

Description

Formerly LumaPro.

Wall Pack, Lumens 9,500 lm, Fixture Wattage 100 W, Voltage 120V AC, Light Distribution Shape Type III, LED Replacement For 100W HPS/MH, Fixture Sensor Type No Sensor Included, Light Technology High Pressure Sodium, Color Temperature 2000K, Color Rendering Index 22, Height 11 7/8 in, Width 8 5/8 in, Includes Lamp Lamp Included, Suggested Lamp Item No. 4V604, Lamp Watts 100 W, Rated Life 20,000 hr, Fixture Housing Color Bronze, Fixture Housing Material Die-Cast Aluminum
