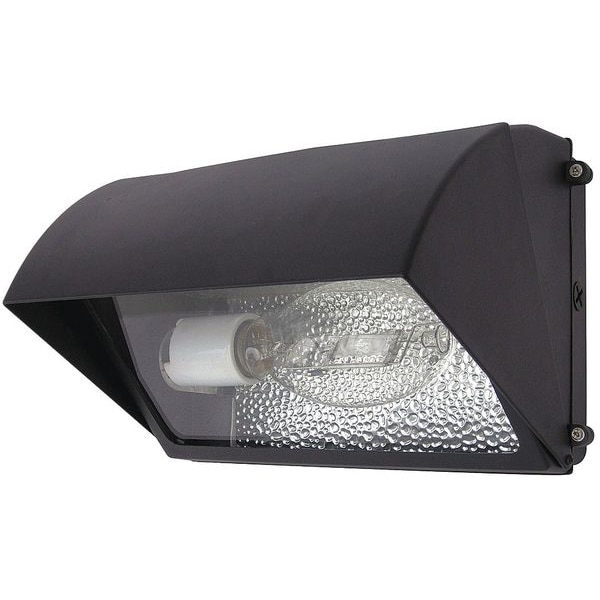

Wall Pack, MH, 120/208/240/277, 150W (Formerly LumaPro)

  • Mfr # 23Y145

  • Zoro # G5202872

product price:
$
180.99
/ea
Free Shipping & Returns

Key Features

Includes
Adjustable Glare Shield
Voltage
120 to 277V AC
Width
9 in
Height
11 in
Length
14 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
23Y145
Zoro #
G5202872
UPC #
190735568651
Country of Origin
China

Dimensions

Width
9 in
Height
11 in
Length
14 1/4 in
Reflector Dia.
36.84*30.48cm
Fixture Length
14 1/4 in
Fixture Height
11 in
Fixture Width
9 in
Mounting Height - Maximum
15 ft
Manufacturers Warranty Length
1 yr
Hub Size
3/4 in NPT
Overall Height
11 in
Overall Width
9 in
Overall Length
14 1/4 in
Knockout Size
1/4 in
Mounting Height - Minimum
10 ft
Wire Rope Length
14 1/4 in

Details

Includes
Adjustable Glare Shield
Item
Anti-Glare Wall Pack
Voltage
120 to 277V AC
Light Technology
Metal Halide
Fixture Sensor Type
No Sensor Included
Lumens
14,000 lm
Finish
Bronze
Fixture Housing Color
Bronze
Suggested Lamp Item No.
1E690
Fixture Lens Material
Glass
Sensor Type - Fixtures
No Sensor Included
Lens Type
Glass
Lighting Certification
Unrated
Standards
UL Listed
Fixture Voltage
120/277
Fixture Temp. Range
-22 Degrees to 122 Degrees F
Reflector Material
Aluminum
Max. Fixture Wattage
150.0
Lamp Included / Lamp Not Included
Lamp Included
Fixture Housing Material
Die-Cast Aluminum
Lamp Watts - Fixtures
150.0
Ambient Temp. Range
-22 Degrees to 122 Degrees F
Type - Wall Pack Fixtures
General Purpose
Housing Material
Aluminum
Mounting
Directly to Wall or Junction Box
Lamp Watts
150 W
Lamp Type
Metal Halide
Light Distribution
Type III
Fixture Rated Life
10,000 hr
Socket Type
Medium
Special Features
Glare Shield
Fixture Mounting Location
Surface Mounts to Recessed Universal Junction Box
Color Rendering Index
65
Light Distribution Shape
Type III
Fixture Wattage
150 W
Color Temperature
4300K
Description/Special Features
Glare Shield
LED Replacement For
150W HPS/MH
Min. Operating Temp.
-22 Degrees F
Includes Lamp
Lamp Included
Max. Operating Temp.
122 Degrees F
Rated Life
10,000 hr
Power Source
Hardwired
Operating Temperature - Minimum
-22 Degrees F
Incandescent Wattage Equivalency
200 W
Color Selectable
Not Selectable
Number of Knockouts
4
Operating Temperature - Maximum
122 Degrees F
Housing Color
Bronze
Light Output
14,000 lm
Sensor Type
Not Sensor Compatible
Metal Halide Wattage Equivalency
150 W
For Location
Outdoor
Number of Hubs
3
High Pressure Sodium Wattage Equivalency
150 W
Lumen Selectable
Not Selectable
Power Source - TS Only
Hardwired
Power Source - old
Hardwired

Description

Formerly LumaPro.

Anti-Glare Wall Pack, Lumens 14,000 lm, Fixture Wattage 150 W, Voltage 120 to 277V AC, Light Distribution Shape Type III, LED Replacement For 150W HPS/MH, Fixture Sensor Type No Sensor Included, Light Technology Metal Halide, Color Temperature 4300K, Color Rendering Index 65, Height 11 in, Width 9 in, Includes Lamp Lamp Included, Suggested Lamp Item No. 1E690, Lamp Watts 150 W, Rated Life 10,000 hr, Fixture Housing Color Bronze, Fixture Housing Material Die-Cast Aluminum
