  11. Weld Neck Pipe Flange, Flat Face, 4 in
Shop All Aluminum Pipe Fittings
Zoro Select

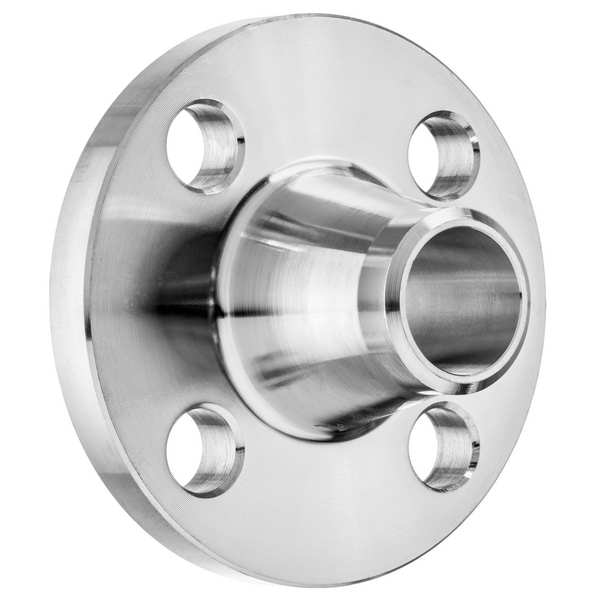

Weld Neck Pipe Flange, Flat Face, 4 in

product price: $234.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Fitting Material Aluminum
  • Specific Fitting Shape Weld Neck Flange
  • Application Air, Non-Potable Water, Oil
  • Temp. Range 0 Degrees to 270 Degrees F
  • Color Silver
See all product information

Product Information

Dimensions

Overall Length 9 in
Flange Outside Diameter 9 in
Nominal Pipe Size 4 in
Bolt Hole Diameter 5/8 in

Details

Item Weld Neck Pipe Flange
Pipe Fitting Material Aluminum
Specific Fitting Shape Weld Neck Flange
Application Air, Non-Potable Water, Oil
Temp. Range 0 Degrees to 270 Degrees F
Color Silver
Standards ANSI/ASME B16.1
For Pipe Schedule 40
Class Class 125
Fitting Connection Type Flanged x Weld Neck
Flange Thickness 7/8 in
Maximum Operating Pressure 125 psi
Low Lead Compliance Level Compliant
Connection Surface Flat Face
Number of Bolt Holes 4
Max. Steam Pressure 185 psi

Description

Weld Neck Flange, Flat Face, 4 in Nominal Pipe Size, Flanged x Weld Neck, 9 in Flange Outside Diameter, 7/8 in Flange Thickness, 9 in Overall Length, Aluminum, Class Class 125, For Pipe Schedule 40, 125 psi Maximum Operating Pressure, 185 psi Max. Steam Pressure, 0 Degrees to 270 Degrees F, Number of Bolt Holes 4, 5/8 in Bolt Hole Diameter

Restrictions
