Shop ZURN

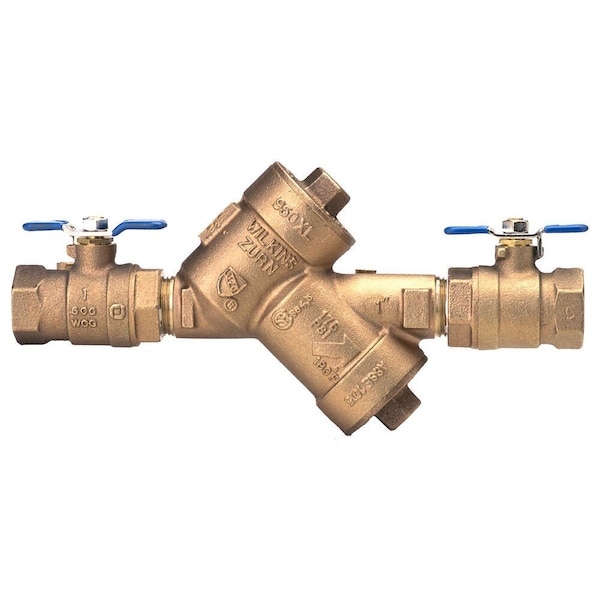

Double Check Backflow Preventer, Bronze

  • Mfr # 34-950XL
  • Zoro # G8667082
product price:
$
9,295.99
/ea
Free Shipping & Returns

Key Features

Height
6.3
Length
13
Features
Short lay length provides easy installation in compact spaces
Width
10
Connection Size - Side 2
3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
34-950XL
Zoro #
G8667082
UPC #
612052040462
Country of Origin
United States

Dimensions

Height
6.3
Length
13
Width
10
Connection Size - Side 2
3/4 in
Check Valve Length
7 in
Overall Height
6.5 in
Nominal Valve Size
3/4 in
Connection Size - Side 1
3/4 in
Overall Width
3.5 in
Overall Length
11.25 in

Details

Item
W/Bv 3/4" 950Xl
Features
Short lay length provides easy installation in compact spaces
Seat Material
Silicone
Includes Flood Protection
No Flood Protection
Maximum Pressure - Steam
175 psi
Seal Material
Silicone
Body Material
Bronze
Flow
45 gpm
Operating Temperature - Maximum
180 Degrees F
Connection Type - Side 1
NPT
Connection Type - Side 2
NPT
Shut-Off Valve Included
Ball Valve
Hazard Protection Level
Low Hazard
Includes Strainer
No Strainer
Maximum Pressure - Operating
175 psi
Spring Material
Stainless Steel
Includes
Double Check Backflow Preventer
Operating Temperature - Minimum
33 Degrees F
Standards
ANSI B1.20.1, ASSE Listed 1015, ASTM B 584, AWWA Compliant C510, Cross Connection Control and Hydraulic Research at the University of Southern California Approved, CSA Certified B64.5, NYC MEA 426-89-M VOL 3
Backflow Preventer Type
Double Check Assembly (DC)
Includes Freeze Sensor
No Freeze Sensor
Mounting Orientation
Horizontal
For Media
Potable Water

Description

Double Check Backflow Preventer,Bronze
