  11. Displacement Connector, 22-14 AWG, PK1000
Shop All Wire Connectors
3M

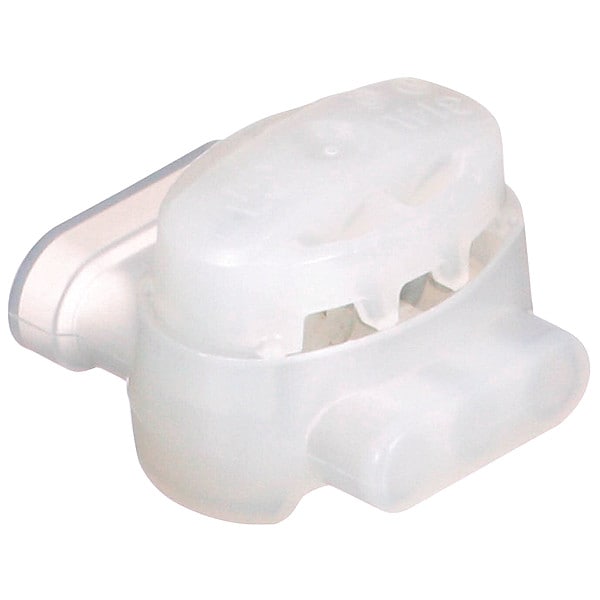

Displacement Connector, 22-14 AWG, PK1000

product price: $362.99
/pk 1000, $0.36/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Color White
  • Max. Voltage 600 V
  • Application Dry Environment
  • Max. Insulation Dia. 0.155 in
  • Standards CSA Certified, UL Listed
See all product information

Product Information

  • Brand 3M
  • MFR # 314U-BIN
  • Zoro # G5546782
  • UPC #
    00054007092339
  • Country of Origin United States
  • Category Wire Connectors

Dimensions

Max. Insulation Dia. 0.155 in
Maximum Run Wire Size 14 AWG
Maximum Tap Wire Size 14 AWG
For Tap Wire Size 14 AWG, 16 AWG, 18 AWG, 19 AWG, 20 AWG, 22 AWG
Minimum Run Wire Size 22 AWG
Maximum Run Wire Insulation Diameter 0.155 in
Maximum Insulation Diameter 0.155 in
Maximum Tap Wire Insulation Diameter 0.155 in
For Run Wire Size 14 AWG, 16 AWG, 18 AWG, 19 AWG, 20 AWG, 22 AWG
Minimum Tap Wire Size 22 AWG

Details

Color White
Max. Voltage 600 V
Application Dry Environment
Standards CSA Certified, UL Listed
Insulation Material Nylon
Flame Retardant Yes
Crimping Tool 2JLF8
Wire Type Electrical
Number of Ports 3
Item Insulation Displacement Connector
Connector Type Pigtail
Max. Temp. 221 Degrees F
Wire Range (Tap) 22 to 14 AWG
Wire Range (Run) 22 to 14 AWG
Fill Material No Fill
Contact Finish Tin
Special Features Self Stripping
Compatible Installation Tool Model Number E-9BM
Compatible with Product Type Luminaries
Contact Material Brass
RoHS Compliant Yes
Maximum Voltage 600 V
Maximum Operating Temperature 221 Degrees F

Description

Insulation Displacement Connector, Color White, Connector Type Pigtail, Insulation Material Nylon, Maximum Insulation Diameter 0.155 in, Maximum Operating Temperature 221 Degrees F, Maximum Run Wire Insulation Diameter 0.155 in, Minimum Run Wire Size 22 AWG, Maximum Run Wire Size 14 AWG, Maximum Tap Wire Insulation Diameter 0.155 in, Minimum Tap Wire Size 22 AWG, Maximum Tap Wire Size 14 AWG, Maximum Voltage 600 V, Number of Ports 3, Contact Finish Tin, Contact Material Brass
