InsltionDisplacemntConnectr, TTap, PK1000
Mfr # 57557
Zoro # G521916009
product price:Â
$
787.99
/pk 1000, $0.79/ea
Free Shipping & Returns
Key Features
Wire Type
Electrical
Maximum Run Wire Size
14 AWG
Minimum Run Wire Size
18 AWG
Minimum Tap Wire Size
18 AWG
Fill Material
No Fill
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 57557
- Zoro #
- G521916009
- UPC #
- 00051128575574
- Country of Origin
- Taiwan, Province of China
Dimensions
- Maximum Run Wire Size
- 14 AWG
- Minimum Run Wire Size
- 18 AWG
- Minimum Tap Wire Size
- 18 AWG
- Maximum Run Wire Insulation Diameter
- 0.23 in
- Maximum Tap Wire Insulation Diameter
- 0.23 in
- Maximum Insulation Diameter
- 0.23 in
- Maximum Tap Wire Size
- 14 AWG
Details
- Wire Type
- Electrical
- Fill Material
- No Fill
- Application
- Dry Environment
- Maximum Tap Conductors
- 1
- Item
- Insulation Displacement Connector
- Connector Type
- T Tap
- Maximum Voltage
- 600 V
- Standards
- CSA, RoHS 2011/65/EU, UL Listed
- Maximum Run Conductors
- 1
- Contact Finish
- Tin
- Insulation Material
- Polypropylene
- Special Features
- Self-Stripping
- Number of Ports
- 1
- Color
- Blue
- Minimum Operating Temperature
- 0 Degrees F
- Contact Material
- Brass
- Resistance Properties
- Corrosion-Resistant
Description

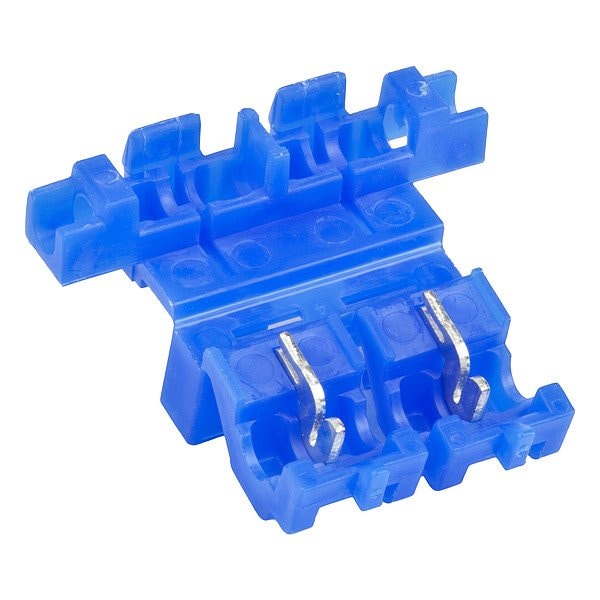

Insulation Displacement Connector, Color Blue, Connector Type T Tap, Insulation Material Polypropylene, Maximum Insulation Diameter 0.23 in, Maximum Operating Temperature 221 Degrees F, Maximum Run Conductors 1, Maximum Run Wire Insulation Diameter 0.23 in, Minimum Run Wire Size 18 AWG, Maximum Run Wire Size 14 AWG, Maximum Tap Conductors 1, Maximum Tap Wire Insulation Diameter 0.23 in, Minimum Tap Wire Size 18 AWG, Maximum Tap Wire Size 14 AWG, Maximum Voltage 600 V, Number of Ports 1
Restrictions
This item has been restricted from sale in the following states:
CA
