Piggyback Disconect, Blue, PK1000
Mfr # MNG14-250DMFK-A
Zoro # G4330426
product price: $811.99
/pk 1000, $0.81/ea
Free Shipping & Returns
Key Features
Insulation
Partial
Insulation Color
Blue
Wire Range
16 to 14 AWG
Insulation Type
Nylon
Connection Type
Crimp
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MNG14-250DMFK-A
Zoro #
G4330426
UPC #
00051138980672
Country of Origin
Taiwan, Province of China
Dimensions
Tab Size
0.032 in x 0.250 in
Overall Length
0.91 in
Barrel Inside Dia.
0.09 in
Tab Thickness
0.032 in
Maximum Wire Size
14 AWG
Tab Width
0.25 in
Barrel Inside Diameter
0.09 in
Minimum Wire Size
16 AWG
Maximum Insulation Outer Diameter
0.15 in
Mates with Female Width
0.25 in

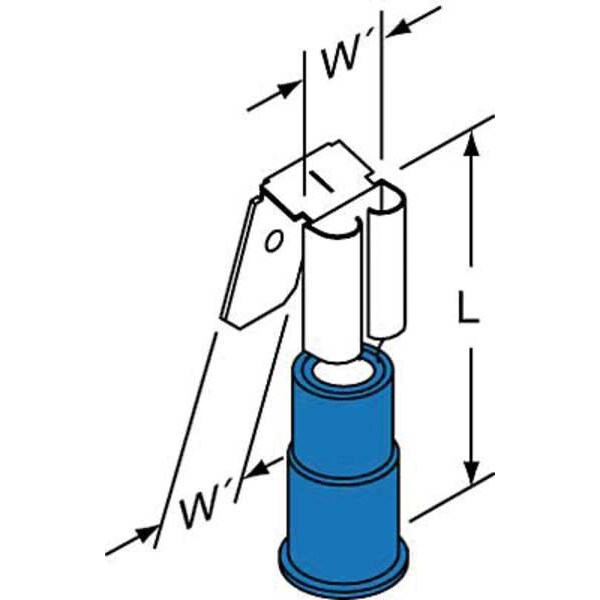

Mates with Male Tab Width (W')
0.25 in
Maximum Insulation Outside Diameter
0.145 in
Description
Wire Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Piggyback Quick Disconnect, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 300 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket/Tab, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Barrel Inside Diameter 0.09 in, Barrel Style Insulation Grip
