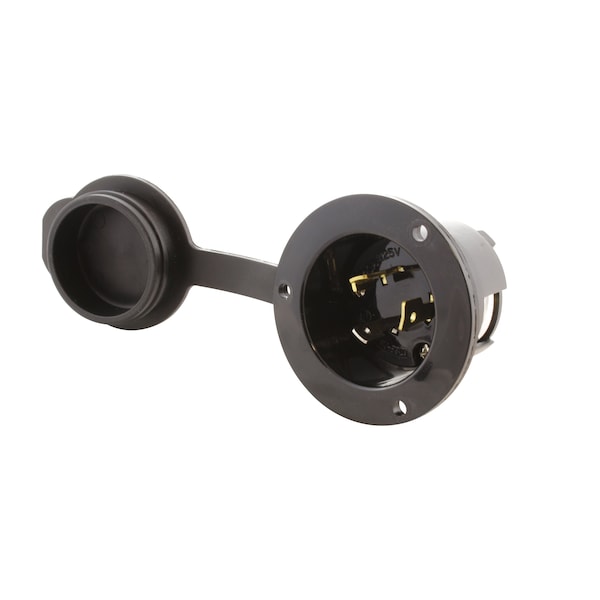

Flanged Locking Inlet, 20 A, 125V AC, Screw Terminals, Black
Mfr # ASINL520P-FC
Zoro # G310113107
Key Features
Specifications
Product Information
- MFR #
- ASINL520P-FC
- Zoro #
- G310113107
- UPC #
- 819145022972
- Country of Origin
- Taiwan, Province of China
Details
- Item
- Flanged Locking Inlet
- Current Rating
- 20 A
- Voltage Rating
- 125V AC
- Wire Connection Type
- Screw Terminals
- Housing Color
- Black
- Cover Type
- Flip-Up Cover
- Flange Type
- Flanged
- Standards
- UL, cULus Listed
- Material
- PVC
- Wattage
- 2500W
- Application
- Flanged Inlet Wiring Device
Description
This AC WORKS brand inlet wiring device (model ASINL520P‐FC) is a heavy‐duty NEMA L5‐20P 20‐amp, 125‐volt locking power inlet designed for industrial, commercial, and residential applications. It features a weather cover for outdoor protection and installs into a flange‐mount opening for secure, long‐term use. The inlet supports 12 AWG or 10 AWG copper wire and is commonly used for boats, RVs, small trailers, cabins, transfer switches, residential backup power, and generator input connections. Its durable construction withstands impacts, chemicals, and harsh weather conditions. This inlet requires mounting holes with a saw size between 2.10 in (53.34 mm) and 2.3 in (58.42 mm). It is cULus E237606 listed and includes a 1‐year limited warranty.
- NEMA L5‐20P 20A 125V locking power inlet
- Heavy‐duty flange‐mount design
- Weather cover for outdoor protection
- Works with 12 AWG or 10 AWG copper wire
- Ideal for residential, generator, transfer switch, cabin, RV, and marine use
- cULus E237606 listed
- Includes #2 size screws
- 1‐year limited warranty
