Straight Blade Plug, TT-30P, 30 A, 125V AC, 2 Pole, Screw Terminals, Grounded
Mfr # ASTT30P
Zoro # G210113122
Key Features
Specifications
Product Information
- MFR #
- ASTT30P
- Zoro #
- G210113122
- UPC #
- 819145025294
- Country of Origin
- Taiwan, Province of China
Dimensions
- For Maximum Cable Diameter
- 0.66 in
- For Minimum Cable Diameter
- 0.595 in
Details
- Item
- Straight Blade Plug
- NEMA Plug Configuration
- TT-30P
- Current Rating
- 30 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Blades
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Style
- Standard
- Connection Orientation
- Angled
- Grounding
- Grounded
- Housing Color
- Black
- IP Rating
- IP20
- Standards
- cULus
- Resistance Properties
- Chemical Resistant, Impact Resistant, Weather Resistant
- Material
- Nylon
- NEMA Configuration
- NEMA TT-30P
- Male/Female
- Male
- Wattage
- 3750W
- Application
- Male Plug Wiring Device
- Indoor/Outdoor
- Indoor/Outdoor
Description

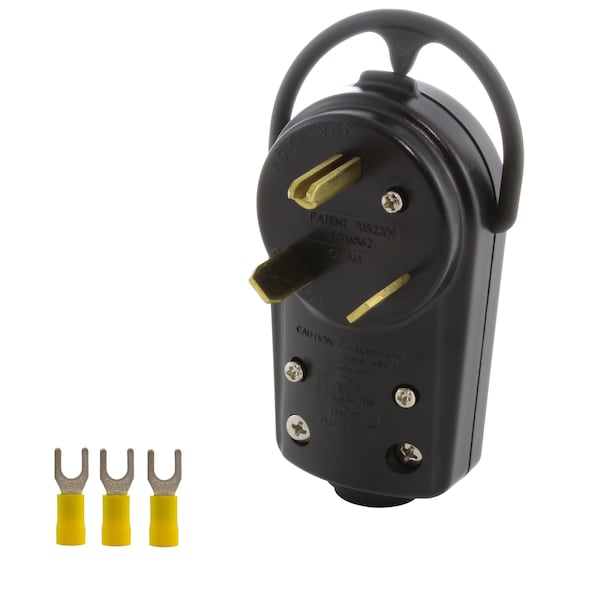

This AC WORKS brand wiring device (model ASTT30P) is a solid, industrial‐grade NEMA TT‐30P plug designed for RV power, generators, and cord‐repair applications. Built to withstand impacts, chemicals, and harsh weather, this 30‐amp, 125‐volt straight‐blade plug is commonly used for RV campground power, travel trailers, and marine shore‐power setups. The plug features a strain‐relief structure compatible with SJT, SJO, SOO, STW, and 10/3 cable types, making it ideal for repairing or building custom RV and generator cords. Thick, high‐quality copper prongs ensure reliable conductivity and long‐term durability. Although the UL‐listed TT‐30P device is marked “Indoor Use Only,” it can still be safely used outdoors when installed in a protected enclosure or connected to outdoor‐rated outlets or outlet boxes. This wiring device is cULus E306862 listed and includes a 5‐year limited warranty.
- NEMA TT‐30P 30A 125V straight‐blade RV plug
- Solid industrial‐grade wiring device
- Durable construction resists impacts, chemicals, and weather
- Thick, high‐quality copper prongs
- Strain‐relief structure for SJT, SJO, SOO, STW, 10/3 cable
- Ideal for repairing or building custom RV and generator cords
- cULus E306862 listed
- Includes 5‐year limited warranty
