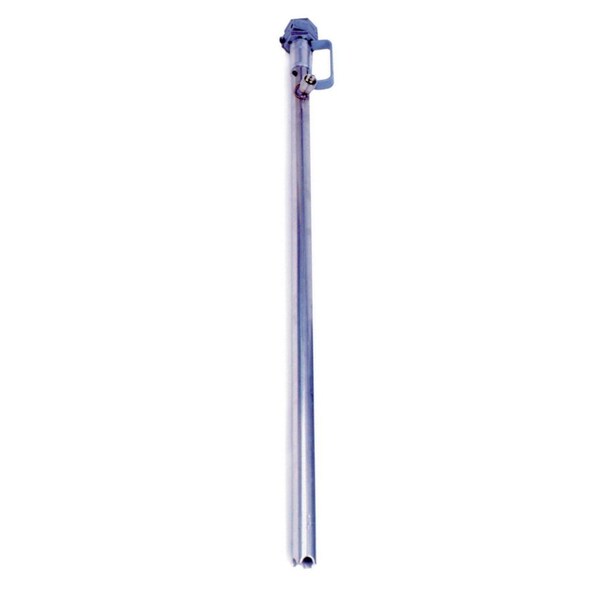

Drum Pump, 80 psi Maximum Air Pressure

Mfr # ACT13NSS
Zoro # G004836947

1,127.99

Free Shipping & Returns

Key Features

For Media Type

For Container Size

15 gal, 30 gal, 55 gal

Max. Flow Rate

12 gpm

Max. Viscosity

1,000 cps

Diesel Exhaust Fluid Compatible

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: ACT13NSS
Zoro #: G004836947
UPC #: 791885902359
Country of Origin: United States

Dimensions

For Container Size: 15 gal, 30 gal, 55 gal
Air Inlet Size: 1/4" NPT
Hose Length: 60 in
Overall Length: 39 in
Spout Length: 2 in
Hose Outside Dia.: 1 in
Air Outlet Size: 1/4 in
Height Above Container: 10 in
Bung Connection Dia.: 2 in
Spout Connection Size: 3/4 in
Air Inlet Connection Size: 1/4 in
Hose Inside Diameter: 7/8 in
Hose Outside Diameter: 1 in
Adapter Connection Diameter: 2 in
Wire Rope Length: 39 in
Length: 39 in

Details

Item: Drum Pump
For Media Type: R
Max. Flow Rate: 12 gpm
Max. Viscosity: 1,000 cps
Diesel Exhaust Fluid Compatible: No
Wetted Materials: PTFE, Stainless Steel
Includes Suction Tube: Yes
For Use With: 6PFN6-63MM BUNG
Discharge Tube Outlet ID: 7/8 in
Hose Tube Material: PVC
Discharge Tube Outlet OD: 1 in
Metered: No
Seal Material: PTFE
Pump Ratio: 1:1
Motor Enclosure: Explosion proof
Self-Priming: Yes
Motor RPM: 6,000 RPM
Food Grade: No
Includes: Pump, Air Motor, 2" bung, Hose
Duty Cycle: Continuous
Features: Silencers
Agency Compliance: No
Runs Dry: No
Max. Fluid Temp.: 212 Degrees F
Adapter Material: Polypropylene
Noise Level: 80 dB
Includes Nozzle: No
Not Recommended Chemicals: Ammonia Liquid,DEF,Ethyl Acetate,Formaldehyde,Fungicides,Gasoline,Glycerin,Grease,Synthetic Oil,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Lithium Grease,Motor Oil,Paint,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%
Power Source: Air
Spout Material: Stainless Steel
Max. Head - Pumps: 12 ft
Motor HP: 1/2 hp
Discharge Connection Type: Spout
Nozzle Operation: Manual
Pump Connection Type: NPT
Pump Connection ID: 2 in
Spout Connection Type: Spout
Max. Air Pressure: 80 psi
Air Consumption: 27 cfm
Housing Material - Pumps: Stainless Steel, PTFE
Max. Oil Flow: 10 gpm
Explosion Proof: Yes
Pump Connection OD: 2 in
For Container Type: Drum
Min. Air Pressure: 20 psi
Adapter Connection Type: 2" NPT
Includes Spout: No
Variable Speed: Yes
Includes Bung Adapter: Yes
Housing Finish: Annodized
Includes Discharge Hose: Yes
Max. Head Pressure: 20 psi
Compatible Chemicals: X
Min. Operating Temp.: 35 Degrees F
Minimum Air Pressure: 20 psi
Maximum Air Pressure: 80 psi
Wetted Material: PTFE/Stainless Steel
Motor Speed: 6,000 RPM
Chemical Compatibility: Acetic Acid 20%,Acetic Acid 80%,Acetone,Ammonium Hydroxide,Anhydrous Ammonia,Antifreeze Coolant,Automatic Transmission Fluid,Biodiesel,Bleach,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Citric Acid 50%,Concentrated Nitric Acid,Cyclohexane,Deionized Water,Diesel Fuel,E85,Ethanol,Ethylene Glycol,Fertilizers,Formaldehyde 40%,Formic Acid,Fresh Water,Gear Lube,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Hydrazine,Isopropanol,Kerosene,Lacquer Thinners,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint Thinner,Pesticides,Potassium Hydroxide 50%,Salt Water,Sodium Bicarbonate 10%,Sodium Bisulfite,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Meter Type Included: No Meter Included
Minimum Fluid Temperature: 35 Degrees F
Maximum Fluid Temperature: 212 Degrees F
Maximum Flow Rate: 12 gpm
Motor Horsepower: 1/2 hp
Maximum Viscosity: 1,000 cps
Pressure Ratio: 1:1
Housing Material: Stainless Steel/PTFE
Maximum Head: 12 ft
Hose Cover Material: PVC
Adapter Connection Standard: NPT
Maximum Oil Flow: 10 gpm
Maximum Head Pressure: 20 psi
Air Inlet Connection Type: NPT
Maximum Outlet Pressure: 20 psi
Power Source - TS Only: Air
Power Source - old: Air

Description

Drum Pump, Max. Air Pressure 80 psi, Spout Connection Size 3/4 in, Suction Tube Material Not Applicable, Self-Priming Yes, Length 39 in, Explosion Proof Yes, Features Silencers, Spout Length 2 in, Food Grade No, Thermal Protection Not Applicable, Air Outlet Size 1/4 in, Bung Connection Dia. 2 in, Air Consumption 27 cfm, Hose Length 60 in, Motor HP 1/2 hp, Variable Speed Yes, Includes Discharge Hose Yes, Motor Enclosure Explosion proof, Noise Level 80 dB, Max. Viscosity 1,000 cps
