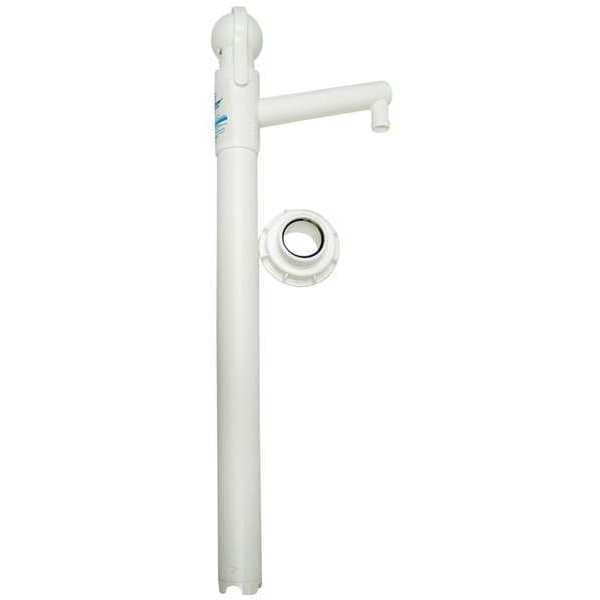

Hand Operated Pail Pump, 0.5 gpm24-3/8" H

Hand Operated Pail Pump, 0.5 gpm24-3/8" H

Mfr # EZ5
Zoro # G6279065

$65.79

Key Features

Action Type

Piston

For Media Type

Acetic Acid, Ammonia, Ammonium Hydroxide, Antifreeze, Biodiesel, Bleach, Calcium Chloride, Cyclohexane, DEF, Diesel Fuel, E85, Ethanol, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oil, Hydrochloric Acid, Isopropanol, Kerosene, Ketones, Lacquer Thinners, Methanol, Methyl Chloride, Motor Oil, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Stoddard Solvent, Water, Xylene

For Container Size

5 gal

Max. Flow Rate

5 oz per stroke

Max. Viscosity

8,800 cps

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

EZ5

Zoro #

G6279065

UPC #

791885905640

Country of Origin

United States

Dimensions

For Container Size

5 gal

Length

Adapter Dia.

2-49/64"

Discharge Tube Length

6-1/4"

Manufacturers Warranty Length

1 yr.

Suction Tube Length

17.5000 in

Discharge Size FPT (In.)

53/64

Inlet Size

1-31/32"

Spout Length

6 in

Height Above Container

6 in

Bung Connection Dia.

2-49/64 in

Spout Connection Size

55/64 in

Overall Width

4 in

Overall Height

24-3/8 in

Details

Item

Hand Operated Pail Pump

Action Type

Piston

For Media Type

Max. Flow Rate

5 oz per stroke

Max. Viscosity

8,800 cps

Diesel Exhaust Fluid Compatible

Yes

Wetted Materials

Polyethylene, Polypropylene

Includes Suction Tube

Yes

For Use With

5 gal, 6 gal Pails, Lubricants, Oils, High Viscosity Fluids, Food Products, Dyes, Mild Acids

Discharge Tube Outlet ID

3/4 in

Discharge Tube Outlet OD

7/8 in

Self-Priming

Yes

Piston Material

Polypropylene

Adapter Material

Polyethylene

Suction Tube Type

Tube

Suction Tube Material

Polypropylene

Metered

Agency Compliance

FDA Compliant, ISO 22241-3

Ounces per Stroke

5 oz.

Includes

Safety Strap

Adapter Type

70mm Pail

Seal Material

Polyethylene

Max. Flow GPM

0.5

Features

Delivers product on the up and down stroke with a zero friction easy pump design, great chemical resistance and excellent compatibility with food products

Compatible Chemicals

Acetic Acid (Glacial), Acetic Acid 20%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Calcium Chloride, Cyclohexane, DEF, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Fertilizers, Formaldehyde, Formaldehyde 40%, Fresh Water, Fungicides, Gasoline, Glycerin, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Paint, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Windshield Washer Fluid, Xylene

Runs Dry

Yes

Power Source

Hand Operated

Food Grade

Yes

Includes Nozzle

Min. Operating Temp.

35 Degrees F

Not Recommended Chemicals

Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Trichlorethylene (50%)

Includes Spout

Yes

Pump Connection ID

1 1/2 in

Spout Material

Polyethylene

Suction Tube OD

1 1/2 in

Max. Head - Pumps

3 ft

Includes Discharge Hose

For Container Type

Bucket, Pail

Housing Material - Pumps

Polypropylene

Includes Bung Adapter

Yes

Max. Fluid Temp.

140 Degrees F

Max. Head Pressure

3 psi

Suction Tube ID

1 3/8 in

Max. Outlet Pressure

5 psi

Gear Lube

Adapter Connection Type

MNPT

Description

Hand Pump, Max. Outlet Pressure 5 psi, Spout Connection Size 7/8 in, Self-Priming Yes, Metered No, Hose Length Not Applicable, Includes Discharge Hose No, Piston Material Polypropylene, Features Delivers product on the up and down stroke with a zero friction easy pump design, great chemical resistance and excellent compatibility with food products, Housing Finish Not Applicable, Seal Material Polyethylene
