Action Pump

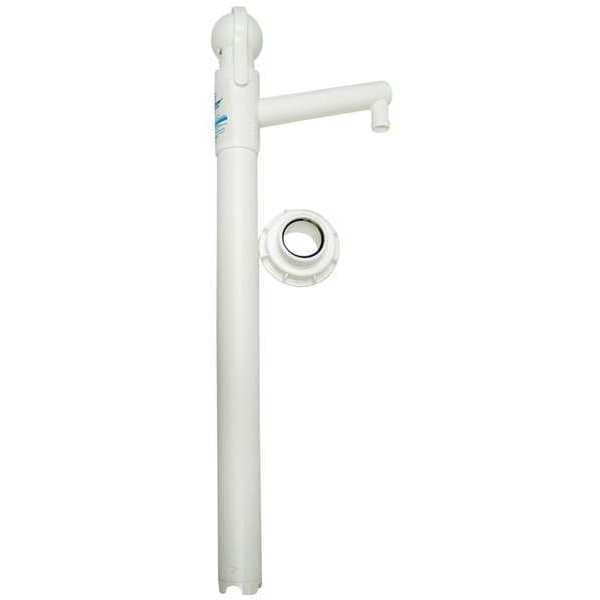

Hand Operated Pail Pump, 0.5 gpm24-3/8" H

Action Pump Hand Operated Pail Pump, 0.5 gpm24-3/8" H EZ5
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$61.95
  • Action Type: Piston
  • Suction Tube Length: 17.5000 in
  • For Media Type: Acetic Acid, Ammonia, Ammonium Hydroxide, Antifreeze, Biodiesel, Bleach, Calcium Chloride, Cyclohexane, DEF, Diesel Fuel, E85, Ethanol, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oil, Hydrochloric Acid, Isopropanol, Kerosene, Ketones, Lacquer Thinners, Methanol, Methyl Chloride, Motor Oil, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Stoddard Solvent, Water, Xylene
See full product details
Orders over $75 ship free.
Total: $61.95

Action Pump #EZ5 Specifications

  • Action Type: Piston
  • Suction Tube Length: 17.5000 in
  • For Media Type: Acetic Acid, Ammonia, Ammonium Hydroxide, Antifreeze, Biodiesel, Bleach, Calcium Chloride, Cyclohexane, DEF, Diesel Fuel, E85, Ethanol, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oil, Hydrochloric Acid, Isopropanol, Kerosene, Ketones, Lacquer Thinners, Methanol, Methyl Chloride, Motor Oil, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Stoddard Solvent, Water, Xylene
  • For Container Size: 5 gal
  • Max. Flow Rate: 5 oz per stroke
  • Max. Viscosity: 8,800 cps
  • Wetted Materials: Polyethylene, Polypropylene
  • Suction Tube ID: 1 13/32 in
  • Food Grade: Yes
  • Discharge Tube Outlet ID: 23/32 in
  • Max. Fluid Temp.: 140 Degrees F
  • Includes: Safety Strap
  • Suction Tube OD: 1 1/2 in
  • Metered: No
  • Discharge Tube Outlet OD: 53/64 in
  • Includes Suction Tube: Yes
  • Runs Dry: Yes
  • Diesel Exhaust Fluid Compatible: Yes
  • GPM: 0.5
  • Length: 3"
  • Discharge Tube Outlet ID Size: 23/32"
  • Adapter Dia.: 2-49/64"
  • Suction Tube Outlet O.D. Size: 1-1/2"
  • Max. Pressure: 20 psi
  • Discharge Tube Length: 6-1/4"
  • Self-Priming: Yes
  • For Use With: 5 gal, 6 gal Pails, Lubricants, Oils, High Viscosity Fluids, Food Products, Dyes, Mild Acids
  • Manufacturers Warranty Length: 1 yr.
  • Housing Material: Polypropylene
  • Discharge Tube Outlet OD Size: 53/64"
  • Piston Material: Polypropylene
  • Adapter Material: Polyethylene
  • Suction Tube Type: Tube
  • Suction Tube Material: Polypropylene
  • Agency Compliance: FDA Compliant, ISO 22241-3
  • Ounces per Stroke: 5 oz.
  • Item: Hand Operated Pail Pump
  • Outlet Size: 7/8"
  • Suction Tube Outlet I.D. Size: 1-13/32"
  • Max. Head: 3 ft.
  • Max. Liquid Temp.: 140 Degrees F
  • Adapter Type: 70mm Pail
  • Width: 4"
  • Discharge Size FPT (In.): 53/64
  • Inlet Size: 1-31/32"
  • Height: 24-3/8"
  • Seal Material: Polyethylene
  • Features: Delivers product on the up and down stroke with a zero friction easy pump design, great chemical resistance and excellent compatibility with food products
  • Compatible Chemicals: Acetic Acid (Glacial), Acetic Acid 20%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Calcium Chloride, Cyclohexane, DEF, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Fertilizers, Formaldehyde, Formaldehyde 40%, Fresh Water, Fungicides, Gasoline, Glycerin, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Paint, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Windshield Washer Fluid, Xylene
  • Power Source: Hand Operated
  • Includes Nozzle: No
  • Spout Length: 6 in
  • Min. Operating Temp.: 35 Degrees F
  • Not Recommended Chemicals: Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Trichlorethylene (50%)
  • Includes Spout: Yes
  • Pump Connection ID: 1 1/2 in
  • Spout Material: Polyethylene
  • Max. Head - Pumps: 3 ft
  • Height Above Container: 6 in
  • Includes Discharge Hose: No
  • Bung Connection Dia.: 2-49/64 in
  • Spout Connection Size: 55/64 in
  • For Container Type: Bucket, Pail
  • Housing Material - Pumps: Polypropylene
  • Includes Bung Adapter: Yes
  • Max. Head Pressure: 3 psi
  • Max. Outlet Pressure: 5 psi
  • Grease: NT
  • Gear Lube: NT
  • Adapter Connection Type: MNPT
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Hand Operated Pail Pump, Action Type Piston, Wetted Materials Polyethylene, Polypropylene, Seal Material Polyethylene, Piston Material Polypropylene, GPM 0.5, Max. Pressure 20 psi, Ounces per Stroke 5 oz., Max. Viscosity 8,800 cps, Inlet Size 1-31/32 In., Outlet Size 7/8 In., Discharge Tube Outlet ID Size 23/32 In., Discharge Tube Outlet OD Size 53/64 In., Discharge Tube Length 6-1/4 In., Suction Tube Length 17.5000 in, Suction Tube Outlet O.D. Size 1-1/2 In.
