  9. Automatic Fuel Nozzle, SS, DEF, 3/4 in.

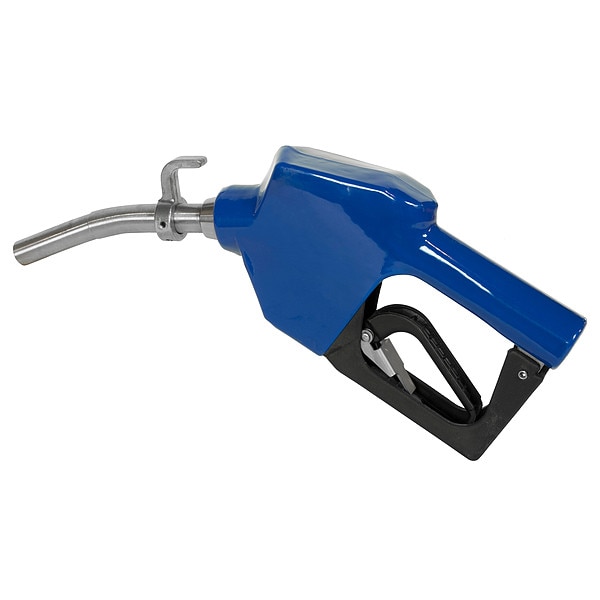

Fill-Rite Automatic Fuel Nozzle, SS, DEF, 3/4 in. FRNS075A - main

Automatic Fuel Nozzle, SS, DEF, 3/4 in.

  • Mfr # FRNS075A

  • Zoro # G1753412

product price: $396.99
/ea
Free Shipping & Returns

Key Features

Wetted Materials
Stainless Steel
Hose Inside Dia.
3/4"
Includes
BSPP Threaded Ends
Nozzle Material
Stainless Steel
Metered
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FRNS075A
Zoro #
G1753412
UPC #
089404215630
Country of Origin
United States

Dimensions

Hose Inside Dia.
3/4"
Inlet Size
3/4 in
Overall Length
15 1/2 in
Spout Length
6 1/2 in
Spout Connection Size
3/4 in
Spout Discharge Size
3/4 in

Details

Item
Drum Pump Nozzle
Wetted Materials
Stainless Steel
Includes
BSPP Threaded Ends
Nozzle Material
Stainless Steel
Metered
No
Diesel Exhaust Fluid Compatible
Yes
Spout Material
Stuitless Steel
Food Grade
No
Compatible Chemicals
DEF
Primary Color
Blue
Max. Fluid Temp.
120 Degrees F
Min. Fluid Temp.
15 Degrees F
Inlet Type
BSP
For Media Type
DEF
Nozzle Operation
Automatic
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Fertilizers, Formic Acid, Fresh Water, Fungicides, Gasoline, Glycerin, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
Max. Operating Pressure
50 psi
Spout Connection Type
Hose Barb
Gear Lube
NT
Grease
NT

Description

Drum Pump Nozzle, Overall Length 15 1/2 in, Primary Color Blue, Food Grade No, Compatible Chemicals DEF, Includes BSPP Threaded Ends, Spout Material Stainless Steel, Max. Operating Pressure 50 psi, Min. Fluid Temp. 15 Degrees F
