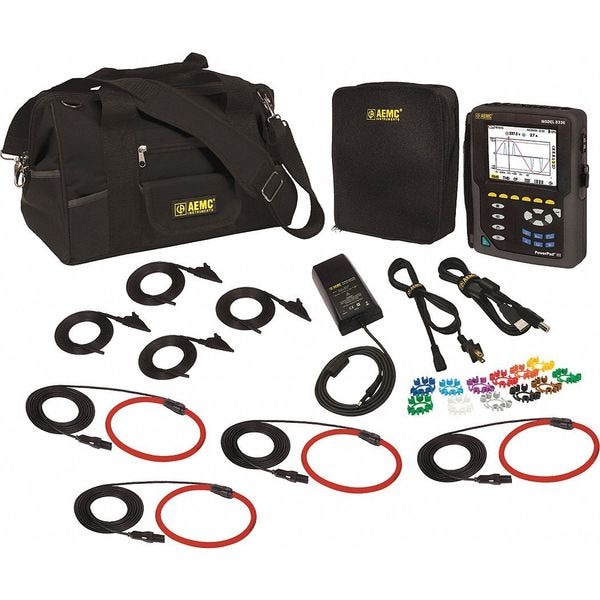

Aemc Instruments Power Quality Analyzer, Max Watts 9999kW 8336 W/4 193-24-BK - main

Power Quality Analyzer, Max Watts 9999kW

  • Mfr # 8336 W/4 193-24-BK

  • Zoro # G5528000

product price: $7,707.99
/ea
Free Shipping & Returns

Key Features

Sampling Rate
200 kHz
Phase
3
Includes
Carrying Bag, Power Adapter with Power Cord, USB Cable, Voltage Leads with Alligator Clips
Max. Watts
9,999 kW
Kit Current Capability
1 to 6,000 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8336 W/4 193-24-BK
Zoro #
G5528000
UPC #
685338220568
Country of Origin
France

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Power Quality Analyzer
Sampling Rate
200 kHz
Phase
3
Includes
Carrying Bag, Power Adapter with Power Cord, USB Cable, Voltage Leads with Alligator Clips
Max. Watts
9,999 kW
Kit Current Capability
1 to 6,000 A
Display
Color TFT
Data Logging
Yes
Calibration Certificate
Not Included
Power Factor
0 to 1
Max. AC Amps
10,000 A
Storage
32 GB
Crest Factor
I=6.5, V=6.5
Display Resolution
320 x 240
Harmonic Capture Range
50th
Voltage Channels
5
Peak Capture
Yes
Max. VA
10 MVA
Calibration Frequency
40 to 69 Hz
Max. DC Voltage
1,000V
Current Channels
4
Voltage Accuracy
+/-0.5%
Safety Rating
Cat IV 600V
Min. Transient Duration
65 uS
AC Response
TRMS
Max. DC Amps
1,000 A
Current Accuracy
Dependent on Current Probe Used
Max. AC Voltage
1,000
Testing Functions
AC Current, AC Voltage, Active, Reactive (Capacitive and Inductive), Non-Active, Distortion and Apparent Energy, Active, Reactive (Capacitive and Inductive), Non-Active, Distortion and Apparent Power, Apparent Harmonic Power, Current and Voltage Crest Factors, Current and Voltage Harmonics, DC Voltage, Displacement Factor (DPF or cos ¿), Frequency, Half-Cycle RMS Voltage and Current, Harmonic Loss Factor (FHL), Inrush Currents, K Factor, Long-Term Flicker of the Voltages (PLT), Peak Voltage and Current, Power Factor (PF), RMS Distortion, Short-Term Voltage Flicker (PST), Total Harmonic Distortion
Maximum AC Current Measured
10,000 A
For Phase
Three
IP Rating
IP53

Description

Power Quality Analyzer, Calibration Certificate None, Current Channels 4, For Phase Three, Includes Carrying Bag, Power Adapter with Power Cord, USB Cable, Voltage Leads with Alligator Clips, Maximum AC Current Measured 10,000 A, Peak Capture Yes, Power Factor 0 to 1
