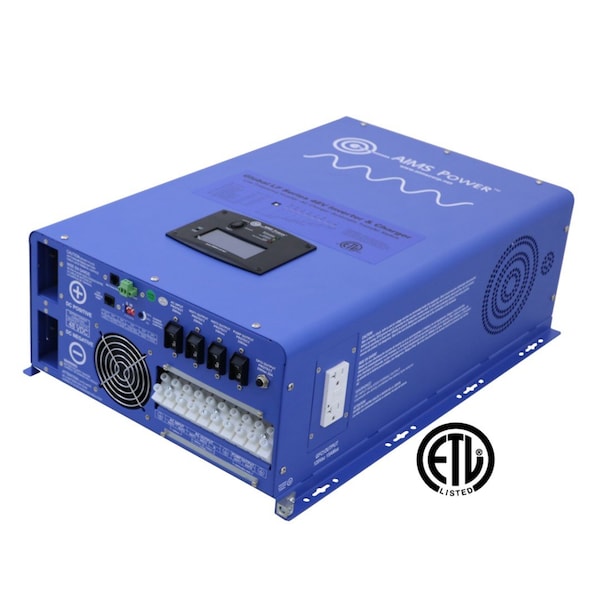

Power Inverter and Battery Charger, Pure Sine, 24,000 W Peak, 8,000 W Continuous, 1 Outlets

  • Mfr # PICOGLF80W48V240VS
  • Zoro # G6930907
product price:
$
3,879.99
/ea
Additional $235.00 delivery surcharge applies per item.
See details

Key Features

Continuous Output Power
8,000 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
48V DC
Inverter Output Voltage
110V AC, 120V AC, 220V AC, 230V AC, 240V AC
Outlet Type
Hardwire
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PICOGLF80W48V240VS
Zoro #
G6930907
UPC #
840271004433
Country of Origin
China

Dimensions

Width
16.3 in
Length
23.3 in
Depth
7.9 in

Details

Item
Power Inverter and Battery Charger
Peak Output Power
24,000 W
Continuous Output Power
8,000 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
48V DC
Inverter Output Voltage
110V AC, 120V AC, 220V AC, 230V AC, 240V AC
Outlet Type
Hardwire
DC Connection
Battery Cables
Number of Outlets
1
Includes
Inverter Charger
Features
8000 Watt low frequency inverter 110/120/220/230/240 Vac Split Phase, 24000 Watt surge for 20 seconds -3x surge capability, ETL Listed to UL 1741 Standards, CSA STDC 22.2 NO.107.1, Battery priority selector, AC direct connect terminal block, Marine coated and protected, Multi stage smart charger 80 Amp charges GEL, Lead, AGM, Lithium, Three cooling fans – thermal and load based, Remote panel available, 60hz or 50 hz selectable dip switch, 10msec typical transfer time, Mounting plate included, Selectable 25W power save mode (hibernation), 8 battery charger settings, 4 stage battery charger, 2 year warranty
Nominal Output Power
8,000 W
Standards
UL 1741-SA I CSA 22.2 No.107-01 I UL1998 I UL1699B
Application
Emergency backup power for residences and businesses
Specification
Continuous Output Power: 8000 Watts;Surge Rating: 24000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);100-110-120Vac / 220-230-240Vac;Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);THD: < 7% under full linear load;Ambient operating temperature: 14°F to 122°F (-10°C to 50°C);Nominal input voltage: 48.0Vdc;Low battery alarm: 42.0Vdc-44.0Vdc;Low battery trip: 40.0Vdc-42.0Vdc;High voltage alarm: 64.0Vdc;Low battery voltage restart: 62.0Vdc;Idle consumption: 100 Watts;Power saver mode idle consumption: <25 Watts;Automatic transfer switch – 50A @ 220/230/240V;Bypass – 50A @ 220/230/240V;Output voltage: depends on battery type;Charger rate: 80A;Four stage smart charger with current adjust dial 20-100%;Unit weight: 132 lbs.;Unit size L x W x H: 23.3 x 16.3 x 7.9 inches;Shipping weight: 176 lbs.;Shipping size L x W x H 30 x 21.25 x 15.25 inches
Nominal Efficiency
>88% (Peak)
Color
Blue

Description

Pure Sine,4000W,Inverter,Charger,12VDC

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
