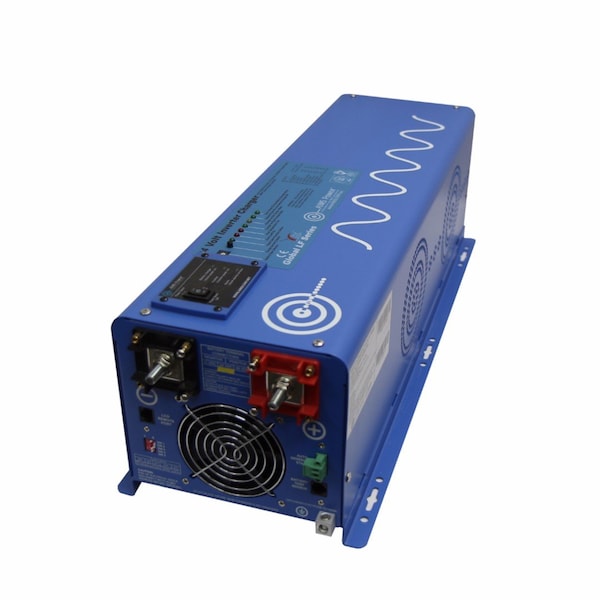

Aims Power Power Inverter and Battery Charger, Pure Sine, 18,000 W Peak, 6,000 W Continuous, 1 Outlets PICOGLF60W48V120V - main

Power Inverter and Battery Charger, Pure Sine, 18,000 W Peak, 6,000 W Continuous, 1 Outlets

  • Mfr # PICOGLF60W48V120V

  • Zoro # G4430119

product price:  $2,228.99
/ea
Free Shipping & Returns

Key Features

Continuous Output Power
6,000 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
48V DC
Inverter Output Voltage
120V AC
Outlet Type
Hardwire
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PICOGLF60W48V120V
Zoro #
G4430119
UPC #
840271002453
Country of Origin
China

Dimensions

Length
27.88 in
Width
8-1/2"
Height
7"
Depth
23-1/2"

Details

Item
Power Inverter and Battery Charger
Peak Output Power
18,000 W
Continuous Output Power
6,000 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
48V DC
Inverter Output Voltage
120V AC
Outlet Type
Hardwire
DC Connection
Battery Cables
Number of Outlets
1
Application
Emergency backup power
Includes
Inverter Charger
Nominal Output Power
6,000 W
Features
6000 watts of continuous power and 18,000 watts of surge (for up to 20 seconds); direct-connect terminal block, which allows users to surpass the 6000 watt capacity and harness its 300% surge power
Inveter Output Voltage
Depends On Battery Type
Specification
Continuous Output Power: 6000 Watts;Surge Rating: 18000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);100-110-120Vac;Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Ambient Operating temperature: 14°F to 122°F (-10°C to 50°C);Nominal Input Voltage: 48.0Vdc;Low Battery Alarm: 42.0Vdc-44.0Vdc;Low Battery Trip: 40.0Vdc-42.0Vdc;High Voltage Alarm: 64.0Vdc;Low Battery Voltage Restart: 53.2Vdc;Idle Consumption: 4.16 amps DC;Power Saver Mode Idle Consumption: <0.83 amps DC;Output voltage: Depends on battery Type;Charger Rate: 60A;Unit Weight: 79 lbs.;Unit Size L x W x H: 27.88 x 8.5 x 7.0 inches;Shipping Weight: 84 lbs.;Shipping L x W x H 30.5 x 14.5 x 13.75 inches
Color
Blue
Nominal Efficiency
>88% (Peak)
Surge Rating
18,000 W (20 Seconds)
Output Waveform
Pure Sine/Same as input (bypass mode)
Output Voltage
100-110-120 VAC

Description

Inverter Charger,Pure Sine,48V,6000W
