Shop AIMS POWER

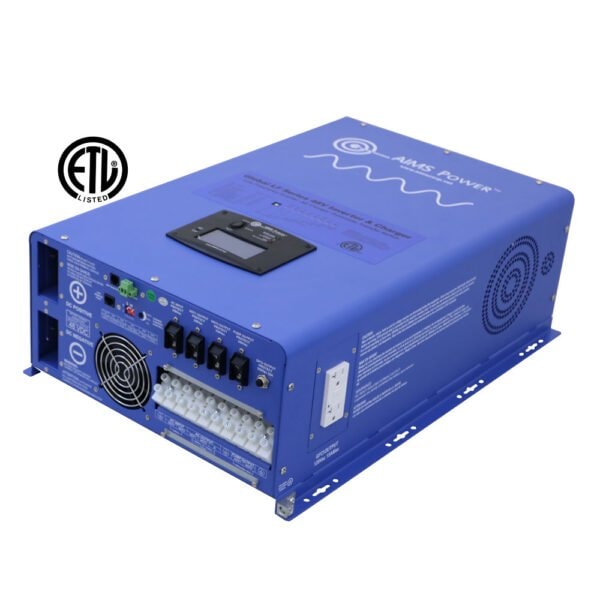

Power Inverter and Battery Charger, Pure Sine, 36,000 W Peak, 12,000 W Continuous, 1 Outlets

  • Mfr # PICOGLF120W48V240VS

  • Zoro # G6930977

product price:
$
4,733.99
/ea
Additional $270.00 delivery surcharge applies per item.
See details

Key Features

Continuous Output Power
12,000 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
48V DC
Inverter Output Voltage
120/240V AC
Outlet Type
Hardwire
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
PICOGLF120W48V240VS
Zoro #
G6930977
UPC #
840271004525
Country of Origin
China
Item
Power Inverter and Battery Charger
Peak Output Power
36,000 W
Continuous Output Power
12,000 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
48V DC
Inverter Output Voltage
120/240V AC
Outlet Type
Hardwire
DC Connection
Battery Cables
Number of Outlets
1
Features
Features: 12000 watt low frequency inverter 110/220Vac Split Phase;36000 watt surge for 20 seconds -3x surge capability;Battery priority selector;Terminal block;Marine coated and protected;Multi stage smart charger 120 Amp charges gel, lead, AGM, and lithium (LiFePO4);Remote panel available;60hz or 50 hz selectable dip switch;10msec typical transfer time;Selectable 25W power save mode (hibernation);8 battery charger settings;Automatic transfer switch
Nominal Output Power
12,000 W
Specification
Continuous Output Power: 12,000 Watts;Surge Rating: 36000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);100-110-120Vac / 220-230-240Vac;Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C);Nominal Input Voltage: 48.0Vdc;Low Battery Alarm: 42.0Vdc-44.0Vdc;Low Battery Trip: 40.0Vdc-42.0Vdc;High Voltage Alarm: 64.0Vdc;Low Battery Voltage Restart: 62.0Vdc;Idle Consumption: 200 Watts;Power Saver Mode Idle Consumption: 40 Watts;Automatic Transfer Switch – 63A @ 220/230/240V;Bypass – 63A @ 220/230/240V;Output Voltage: Depends on battery Type;Charger Rate: 120A;Four Stage Smart Charger with Current Adjust Dial: 0%-20%-100%;Unit Weight: 174 lbs.;Unit Size L x W x H: 23.3 x 16.3 x 7.9 inches;Shipping Weight: 200 lbs.;Shipping L x W x H 30 x 21.25 x 15.25 inches

Description

Pure Sine,12kW,Inverter,Charger,48VDC,UL
