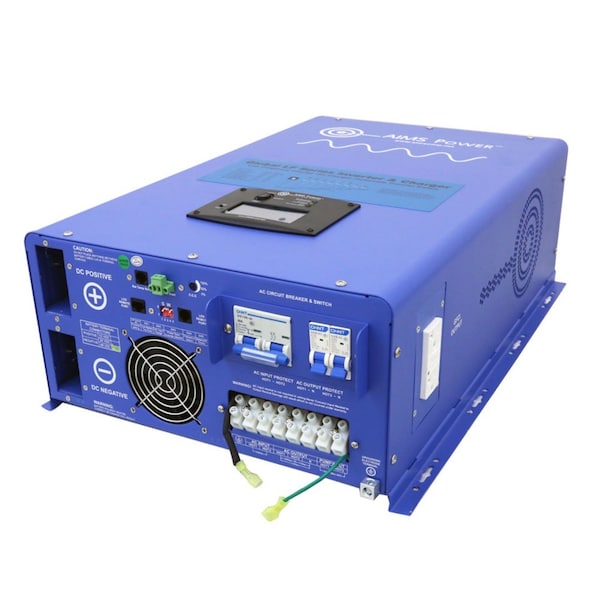

Aims Power Power Inverter and Battery Charger, Pure Sine, 3,0000 W Peak, 10,000 W Continuous, 1 Outlets PICOGLF10KW48V240VS - main

Power Inverter and Battery Charger, Pure Sine, 3,0000 W Peak, 10,000 W Continuous, 1 Outlets

  • Mfr # PICOGLF10KW48V240VS

  • Zoro # G4430225

product price:  $3,685.78
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Continuous Output Power
10,000 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
48V DC; 240V AC
Inverter Output Voltage
120/240V AC
Outlet Type
Hardwire
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PICOGLF10KW48V240VS
Zoro #
G4430225
UPC #
840271002330
Country of Origin
China

Dimensions

Length
23.3 in
Depth
23.30"
Width
16.30"
Height
7.90"

Details

Item
Power Inverter and Battery Charger
Peak Output Power
3,0000 W
Continuous Output Power
10,000 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
48V DC; 240V AC
Inverter Output Voltage
120/240V AC
Outlet Type
Hardwire
DC Connection
Battery Cables
Number of Outlets
1
Application
Emergency backup power in homes, business and recreation locations
Includes
Inverter Charger
Features
10000 watt low frequency inverter 110/220Vac Split Phase, 30000 watt surge for 20 seconds -3x surge capability, Battery Priority Selector, Terminal Block, Marine Coated and Protected, Multi Stage Smart charger 100 Amp charges GEL, Lead, AGM, Lithium, Remote panel available, 10msec typical transfer time, Selectable 25W power save mode (hibernation), 8 battery charger settings, Automatic transfer switch, 1 year warranty
Nominal Output Power
10,000 W
Inveter Output Voltage
Depends On Battery Type
Specification
Continuous Output Power: 10000 Watts;Surge Rating: 30000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);100-110-120Vac / 220-230-240Vac;Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Ambient operating temperature: 14°F to 122°F (-10°C to 50°C);Nominal Input Voltage: 48.0Vdc;Low Battery Alarm: 42.0Vdc-44.0Vdc;Low battery Trip: 40.0Vdc-42.0Vdc;High Voltage Alarm: 64.0Vdc;Low battery Voltage Restart: 62.0Vdc;Idle Consumption: 150 Watts;Power Saver Mode Idle Consumption: 35 Watts;Output voltage: Depends on battery Type;Charger Rate: 100A;Unit Weight: 145.5 lbs.;Unit Size L x W x H: 23.3 x 16.3 x 7.9 inches;Shipping Weight: 190 lbs.;Shipping L x W x H 30 x 21.25 x 15.25 inches
Color
Blue
Nominal Efficiency
>88% (Peak)

Description

Inverter Charger,120/240VAC,10000W,48V
