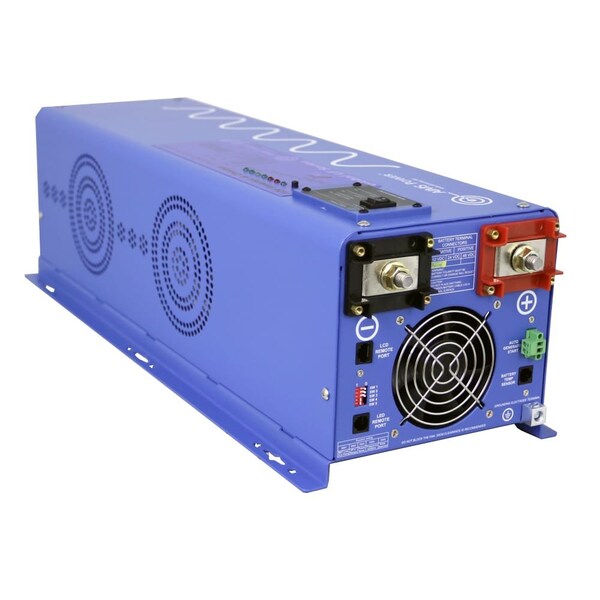

Aims Power Power Inverter and Battery Charger, Pure Sine, 12,000 W Peak, 4,000 W Continuous, 1 Outlets PICOGLF4012120240VS - main

Power Inverter and Battery Charger, Pure Sine, 12,000 W Peak, 4,000 W Continuous, 1 Outlets

  • Mfr # PICOGLF4012120240VS

  • Zoro # G6930889

product price:  $2,209.99
/ea
Additional $90.00 delivery surcharge applies per item.
See details

Key Features

Continuous Output Power
4,000 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
12V DC
Inverter Output Voltage
120/240V AC
Outlet Type
Hardwire
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PICOGLF4012120240VS
Zoro #
G6930889
UPC #
840271002323
Country of Origin
China

Dimensions

Depth
7.25 in
Width
8.75 in
Length
31.5 in

Details

Item
Power Inverter and Battery Charger
Peak Output Power
12,000 W
Continuous Output Power
4,000 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
12V DC
Inverter Output Voltage
120/240V AC
Outlet Type
Hardwire
DC Connection
Battery Cables
Number of Outlets
1
Features
4000 watt low frequency inverter, 12,000 watt surge for 20 seconds 300% surge capability, 120/240 VAC output Split Phase Charges with 120 Vac multi-stage smart charger, 115 Amp battery priority selector, Charges lithium LiFePO4, gel, AGM and lead batteries. We recommend checking battery charging specifications for all batteries., Direct connect AC terminal block, Marine coated and protected, Remote panel available auto frequency, 10msec typical transfer time optional 25W power save mode, 7 battery type settings for charger, 7 Automatic transfer switch
Includes
Inverter Charger
Nominal Output Power
4,000 W
Application
Off-grid, mobile and emergency backup power
Specification
Continuous Output Power: 4000 Watts;Surge Rating: 12,000 Watts (20 Seconds);Output 120/240 Vac – Split Phase 60hz;Output Waveform: Pure Sine/Same as input (Bypass Mode);Nominal Efficiency: >88% (Peak) Line Mode Efficiency: >95%;Output Frequency: 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C);Nominal Input Voltage: 12.0Vdc;Minimum Start Voltage: 10.0Vdc;Low Battery Alarm: 10.5Vdc-11.0Vdc;Low battery Trip: 10.0Vdc-10.5Vdc;High Voltage Alarm: 16.0Vdc Low battery;Voltage Restart: 15.5Vdc;Idle Consumption: 50 Watts;Power Saver Mode Idle Consumption: 21 Watts;Output voltage: Depends on battery Type;Charger Rate: 115A Over;Charge Protection Shutdown 15.7V;Selectable Charge setting based on battery type;Adjustable charge current off-20%-100%;Four Stage Smart Charger;Transfer Switch Specifications 40 amp automatic transfer switch 10 ms (max);Unit weight: 75 lb;Unit size: L x W x H: 31.5 x 8.75 x 7.25 inches;Shipping weight: 87 lb;Shipping size: L x W x H: 35.5 x 14.50 x 13.50 inches;Shipping Weight: 75 lbs. Shipping L x W x H 30.5 x 14.5 x 13.75 inches
Color
Blue
Nominal Efficiency
>88% (Peak)

Description

Pure Sine,8kW,Inverter,Charger,48VDC,ETL
