  5. Standard Duty Hazardous Location Industrial Fan, Wall Mount, 30 in Blade Dia, 115/230V
Airmaster Fan Standard Duty Hazardous Location Industrial Fan, Wall Mount, 30 in Blade Dia, 115/230V 20371 - main

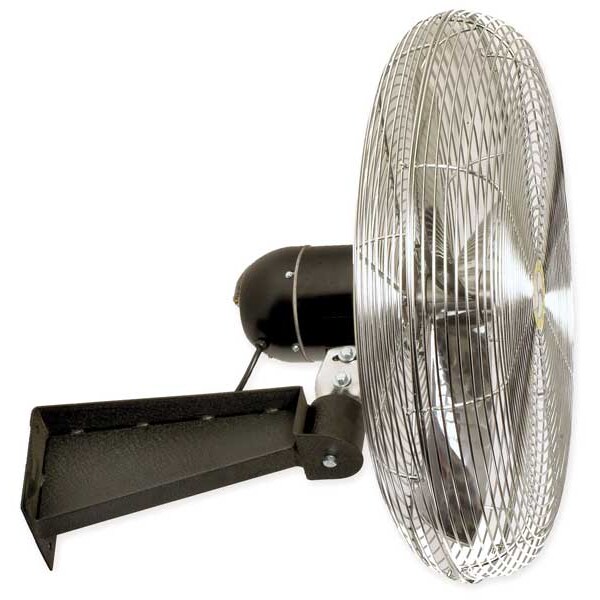

Standard Duty Hazardous Location Industrial Fan, Wall Mount, 30 in Blade Dia, 115/230V

  • Mfr # 20371

  • Zoro # G5288394

product price:  $1,139.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
30 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/230V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
20371
Zoro #
G5288394
UPC #
783429203718
Country of Origin
United States

Dimensions

Blade Diameter
30 in
Shaft Dia.
5/8 in
Max. Depth
21 in
Height
33 in
Width
33 in
Outside Dia.
33 in
Fan Cord Length
12 ft

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/230V
Phase
1
Motor HP
1/4
Air Flow
4,463/8,402 cfm
Drive Type
Direct Drive
Blade Material
Cast Aluminum
Fan Power Source
Hardwired
Sound Level
74 dBA
Item
Hazardous Location Industrial Fan
Mobile/Stationary
Stationary
Bearing Type
Ball
Motor RPM
1,140 RPM
Standards
OSHA Compliant Safety Guards
Guard Material
Steel
CFM Low
4463
Motor Enclosure
Totally Enclosed Fan Cooled
Assembled
Yes
Housing Material
Steel
Fan Accessory Style
Standard
Air Velocity @ 10 Ft.
1,000 fpm
Watts
410/415 W
Motor Insulation
Class B
Thermal Protection
Auto
Number of Blades
3
CFM High
8402
Fan Mounting Location
Wall
Air Velocity @ 20 Ft.
700 fpm
Application
Spot Cooling and People Cooling
CFM Medium
6259
Air Velocity @ 60 Ft.
300 fpm
Environmental Applications
Hazardous Location
Includes
Cable Kit
Hz
60 Hz
Max. Ambient Temp.
104 Degrees F
Motor Type
Permanent Split Capacitor
Wire Guard Finish
Nickel Chrome
Air Velocity @ 80 Ft.
200 fpm
Fan Style
Standard Duty
Air Velocity @ 40 Ft.
400 fpm
Fan Accessory Material
Aluminum
Wheeled Base
Stationary
Material
Steel
Amps
6.9/3.5 A
RPM
1,140 RPM
Motor Design
Single-Phase
Motor hp
1/4 hp

Description

Mounted Fan, Blade Dia. 30 in, Stationary, Non-Oscillating, 1 Speeds, Voltage 115/230V AC, 1 Phase, CFM High 8402, CFM Low 4463, Air Velocity @ 20 Ft. 700 fpm, Motor HP 1/4 hp, Motor RPM 1140, Operating Amps 6.0/3, Fan Mounting Location Wall, Fan Accessory Style Standard, Fan RPM 1140, Sound Level 74 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 410/415 W, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 33 In., Height 33 in, Width 33 in, Max. Depth 21 In.
