Akg

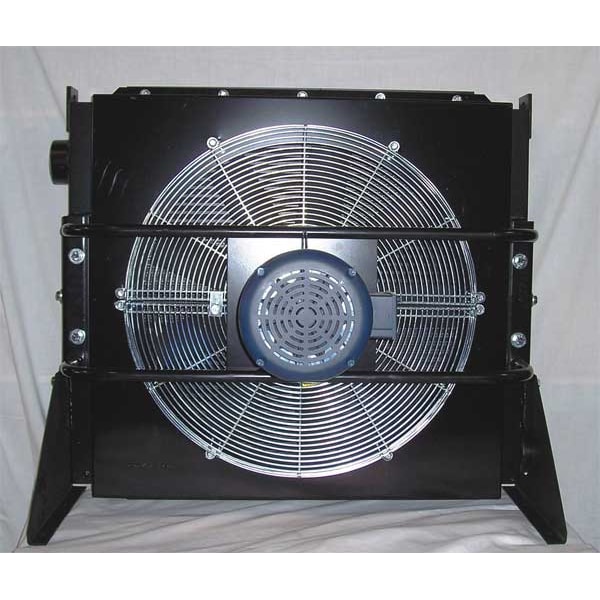

Air Aftercooler, Max HP 350,2300 CFM

product price: $6,042.99
/ea
Item requires special delivery charges. A $300.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Max. Compressor 350
  • Max. Pressure (PSI) 250 psi
  • Fan HP 5
  • Voltage 230/460V AC
  • Junction Box Single Point Electrical
See all product information

Product Information

Dimensions

Depth (In.) 24.76 in
Width (In.) 40.94 in
Height (In.) 35.9 in
Air Inlet Size 3 in
Overall Depth 24 3/4 in
Air Outlet Size 3 in
Overall Height 35 7/8 in
Overall Width 40 15/16 in

Details

Max. Compressor 350
Max. Pressure (PSI) 250 psi
Fan HP 5
Voltage 230/460V AC
Junction Box Single Point Electrical
Shell Material Steel
Max. Flow CFM @ 100 PSI 2,300
Tube Material Aluminum
Min. Pressure (PSI) 60 psi
Standards CSA Certified, UL Listed
Application Removes Harmful Water, Oil and Contaminants from Compressed Air System
Max. Temp. (F) 350 Degrees F
Max. Amps 13.2/6.6 A
NPT Inlet/Outlet Air (In.) 3 in
Item Air Cooled Aftercooler
Includes Mounting Legs
Fin Material Aluminum
Construction Aluminum
For Use With Rotary Air Compressor
Frequency 60 Hz
Junction Box Design Single Point Electrical
Minimum Operating Pressure 60 psi
Phase Three
Maximum Air Flow 2,300 cfm
Features Reduced Air Slide Fouling
Maximum Operating Temperature 350 Degrees F
Maximum Fan Horsepower 5 hp
Maximum Operating Pressure 250 psi
Cooling Method Air
Air Inlet Connection Type NPT
Maximum Compressor Output Power 300 hp
Current Rating 13.2 A
Air Outlet Connection Type NPT

Description

Air Cooled Aftercooler, Maximum Compressor Output Power 300 hp, Maximum Air Flow 2,300 cfm, Air Inlet Size 3 in, Air Inlet Connection Type NPT, Maximum Operating Temperature 350 Degrees F, Maximum Operating Pressure 250 psi, Overall Height 35 7/8 in, Overall Width 40 15/16 in, Overall Depth 24 3/4 in, Phase Three, Voltage 230/460V AC, Maximum Fan Horsepower 5 hp, Air Outlet Connection Type NPT, Air Outlet Size 3 in, Construction Aluminum, Cooling Method Air, Current Rating 13.2 A
