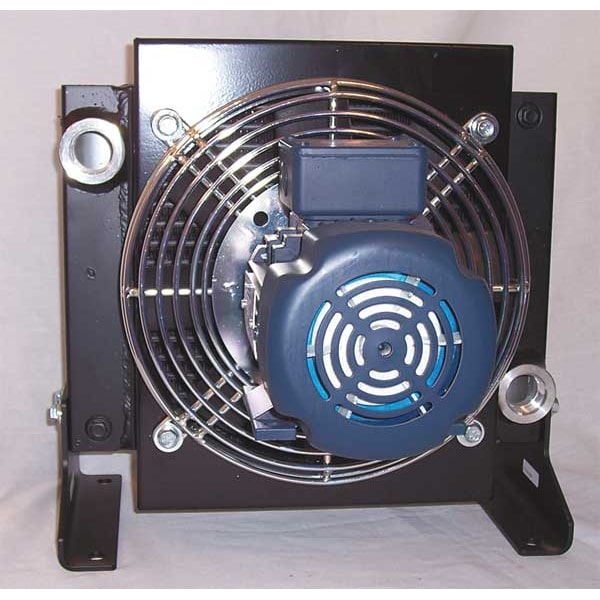

Oil Cooler, AC, 4-50 GPM, 115/230 V, 1/2 HP

Mfr # A10-1
Zoro # G2143644

1,292.99

/ea

Free Shipping & Returns

Key Features

HP Heat Removed

10 hp

Motor Type - Oil Coolers

Max. Flow

50 gpm

Max. Pressure

377 psi

Voltage

115/230V AC

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: A10-1
Zoro #: G2143644
UPC #: -
Country of Origin: United States

Dimensions

Inlet Port Thread Size: SAE #16
Depth (In.): 14.5
Height (In.): 15.91
Port Size: SAE #16
Width (In.): 15.75
Overall Depth: 14.5 in
Overall Width: 15.75 in
Overall Height: 15.91 in
Outlet Port Thread Size: SAE #16
Motor Frame Size: 56C

Details

HP Heat Removed: 10 hp
Motor Type - Oil Coolers: AC
Max. Flow: 50 gpm
Max. Pressure: 377 psi
Voltage: 115/230V AC
Number of Phases: 1
Item: Forced Air Oil Cooler
Max. Pressure (PSI): 377
Finish: Black Painted
Type: AC Motor
NEMA/IEC Frame: 56C
Construction: Aluminum
Motor HP: 1/2 hp
Max. Temp.: 250 Degrees F
Motor Amps: 7/3.5
Includes: Mounting Feet
Flow Ranges (GPM): 4 to 50
Fan Blade Material: PPG
Motor Enclosure Design: Totally Enclosed Fan-Cooled
Fan Guard Material: Steel
With Motor/Without Motor: With Motor
Oil Cooler Material: Aluminum
Inlet Port Thread Gender: Female
Includes Mounting Hardware: Yes
Includes Mounting Bracket: Yes
No. of Fans: 1
Flow Range: 4 to 50 gpm
Shroud Material: Steel
Bypass Valve Included: No
Compatible Hydraulic Fluids: Up to ISO 320
Max. Operating Temp.: 250 Degrees F
Full Load Amps: 7/3.5 A
HP: 0.5 hp
Oil Cooler Finish: Powder Coated
Outlet Port Thread Gender: Female
Mounting Bracket Material: Steel
Max. Oil Temp.: 250 Degrees F

Description

Forced Air Oil Cooler, HP Heat Removed 10 hp, Voltage 115/230V AC, Number of Phases 1, Max. Flow 50 gpm, Max. Pressure 377 psi, Inlet Port Thread Size SAE #16, Inlet Port Thread Gender Female, Outlet Port Thread Size SAE #16, Outlet Port Thread Gender Female, Overall Height 15.91 in, Overall Width 15.75 in, Overall Depth 14.5 in, Flow Range 4 to 50 gpm, 7/3.5 A Full Load Amps, 0.5 hp HP, Motor Frame Size 56C, Motor Type - Oil Coolers AC
