  9. Centrifugal Pump, 230VAC, SS
Shop All Straight Center Discharge Pumps
American Stainless Pumps

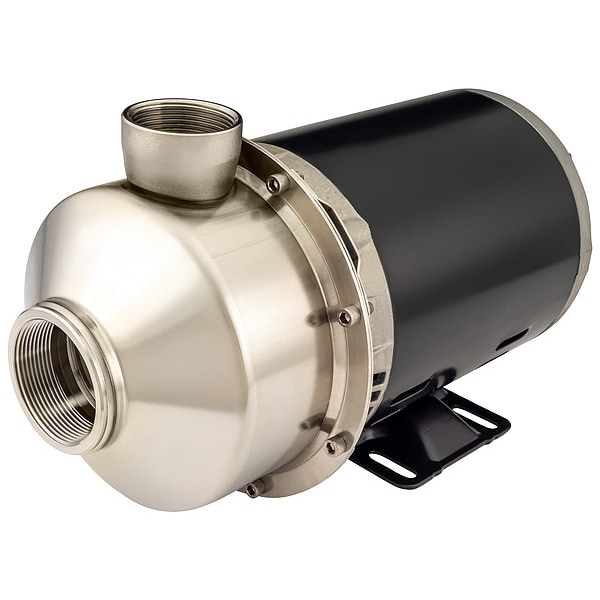

Centrifugal Pump, 230VAC, SS

Hover or click to zoom Tap to zoom
Help us improve our product images
Key Features
  • Discharge Pump Type: Centrifugal Pump
  • HP - Pumps: 3 hp
  • Phase - Pumps: 1
  • Voltage - Pumps: 230VAC
  • Max. Pressure - Pumps: 119 ft of head
  • Housing Material - Pumps: 304 Stainless Steel
  • Inlet Size - Pumps: 2 in NPT
  • Outlet Size - Pumps: 1.5 in NPT
See full product details
$1,226.82
Ships from United States
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

American Stainless Pumps #C2562443T2F Specifications

  • Discharge Pump Type: Centrifugal Pump
  • HP - Pumps: 3 hp
  • Phase - Pumps: 1
  • Voltage - Pumps: 230VAC
  • Max. Pressure - Pumps: 119 ft of head
  • Housing Material - Pumps: 304 Stainless Steel
  • Inlet Size - Pumps: 2 in NPT
  • Outlet Size - Pumps: 1.5 in NPT
  • Motor Enclosure - Pumps: Totally Enclosed Fan-Cooled
  • Best Efficiency Range GPM @ Head: 60 to 105 gpm
  • Duty: Continuous
  • Installation Position: Horizontal
  • Width: 7 1/2 in
  • Amps: 13.7-13.0
  • Bearing Type: Sealed Ball
  • Inlet Pressure: 10 psi
  • Max. Dia. Solids: 9/50 in
  • Max. Specific Gravity: 1.05
  • Best Efficiency GPM @ PSI: 85
  • Length: 16 in
  • Motor Type: 1 - Phase; Totally Enclosed Fan-Cooled; Capacitor Start
  • Impeller Type: Enclosed
  • Cord Type: None
  • Port Rotation: Top
  • Height: 8 19/50 in
  • Max. Liquid Temp.: 400 Degrees F
  • GPM of Water @ 100 Ft. of Head: 60 g/min
  • GPM of Water @ 90 Ft. of Head: 75 g/min
  • GPM of Water @ 70 Ft. of Head: 104 g/min
  • Overload Protection: Auto
  • Frame: 56J
  • Impeller Material: Stainless Steel
  • Motor Ambient Temp. Rating: 40 Degrees C
  • Thermal Protection: No
  • Agency Compliance: CSA, UL
  • Diameter: 7 1/2 in
  • Item: Centrifugal Pump
  • Max. Head: 119 ft
  • Seal Material: Carbon, Silicon Carbide, Viton
  • GPM of Water @ 80 Ft. of Head: 90 g/min
  • Hz: 60 Hz
  • Manufacturers Warranty Length: 1 yr
  • GPM of Water @ 50 Ft. of Head: 115 g/min
  • Wetted Materials: Stainless Steel
  • Motor RPM: 3,450 RPM
  • Max. Case Pressure: 125 psi
  • GPM of Water @ 110 Ft. of Head: 40 g/min
  • Length (Straight Wireway): 16 in
  • Series: SSPC
  • Frequency: 60 Hz
  • Overall Width: 7.5 in
  • Best Efficiency Head: 84 ft
  • Flow Rate @ 30 ft of Head (Maximum): Not Applicable
  • Maximum Media Temperature: 400 Degrees F
  • Duty Cycle: Continuous
  • Flow Rate @ 5 ft of Head (Maximum): Not Applicable
  • Motor Enclosure Broad: TEFC
  • Flow Rate @ 220 ft of Head (Maximum): Not Applicable
  • Flow Rate @ 60 ft of Head (Maximum): 114 gpm
  • Nameplate Voltage: 230V AC
  • Flow Rate @ 260 ft of Head (Maximum): Not Applicable
  • Standards: CSA Certified, UL Listed
  • Compatible Intake Pipe Size: 2 in
  • Discharge Type: NPT
  • Overall Height: 8.3 in
  • Flow Rate @ 10 ft of Head (Maximum): Not Applicable
  • Flow Rate @ 50 ft of Head (Maximum): 115 gpm
  • Best Efficiency Flow: 85 gpm
  • Flow Rate @ 180 ft of Head (Maximum): Not Applicable
  • Phase Broad: 1
  • Flow Rate @ 120 ft of Head (Maximum): Not Applicable
  • Suction Lift (Maximum): 24 ft
  • Flow Rate @ 70 ft of Head (Maximum): 75 gpm
  • Intake and Discharge Size: 2 in , 5 3/4 in
  • Specific Gravity (Maximum): 15
  • Flow Rate @ 300 ft of Head (Maximum): Not Applicable
  • Motor Frame Designation: 56J
  • Flow Rate @ 240 ft of Head (Maximum): Not Applicable
  • Flow Rate @ 40 ft of Head (Maximum): Not Applicable
  • Compatible Discharge Pipe Size: 5 3/4 in
  • Flow Rate @ 280 ft of Head (Maximum): Not Applicable
  • Wetted Material: Stainless Steel
  • Electrical Connection Type: Hardwired
  • Motor Ambient Temperature (Maximum): 104 Degrees F
  • Flow Rate @ 1 ft of Head (Maximum): Not Applicable
  • Nominal Voltage: 230V AC
  • Maximum Flow Rate: 116 gpm
  • Priming: Manual
  • Pump Housing Material Broad: SS
  • Flow Rate @ 200 ft of Head (Maximum): Not Applicable
  • Motor Enclosure Type: TEFC
  • NPSHr: 10 psi
  • Flow Rate @ 90 ft of Head (Maximum): 75 gpm
  • Flow Rate @ 140 ft of Head (Maximum): Not Applicable
  • Impeller Design: Closed
  • Flow Rate @ 15 ft of Head (Maximum): Not Applicable
  • Flow Rate @ 100 ft of Head (Maximum): 60 gpm
  • For Use With Potable Systems: Yes
  • Mounting Orientation: Horizontal
  • Solid Diameter (Maximum): 0.18 in
  • Maximum RPM: 3,500 RPM
  • Pump Housing Material: Stainless Steel
  • Overall Length: 16 in
  • Maximum Feet of Head: 119 ft
  • Thermal Overload Protection: No
  • Flow Rate @ 160 ft of Head (Maximum): Not Applicable
  • Intake Type: NPT
  • Horsepower: 3 hp
  • Flow Rate @ 20 ft of Head (Maximum): Not Applicable
  • Flow Rate @ 80 ft of Head (Maximum): 90 gpm
  • Country of Origin (subject to change): Multiple

Description

Centrifugal Pump, Phase Single, Pump Housing Material Stainless Steel, Horsepower 3 hp, Nameplate Voltage 230V AC, Flow Rate @ 60 ft of Head (Maximum) 114 gpm, Flow Rate @ 80 ft of Head (Maximum) 90 gpm, Maximum Feet of Head 119 ft, Compatible Intake Pipe Size 2 in, Intake Type NPT, Compatible Discharge Pipe Size 5 3/4 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 116 gpm, Flow Rate @ 50 ft of Head (Maximum) 115 gpm

Restrictions and Compliance

  • WARNING: Cancer For more information go to www.P65Warnings.ca.gov
  • This product has been manufactured to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
