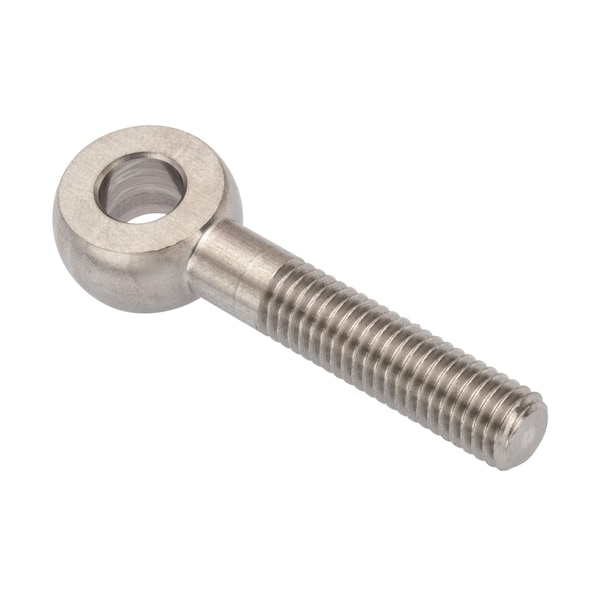

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM8X45-174
Zoro # G610724010
product price: $21.19
/eaKey Features
Type
Fixed Rod End
Thread Size
M8-1.25
Shank Thread Size
M8-1.25
Shank Thread Length
29 mm
Resistance Properties
Chemical Resistant, Corrosion Resistant
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ZEBM8X45-174
Zoro #
G610724010
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M8-1.25
Shank Thread Size
M8-1.25
Shank Thread Length
29 mm
Head Outside Diameter
18 mm
Head Width
9 mm
Overall Length
54 mm
Ball Diameter
8 mm
Bore Diameter
8 mm
Eye Inside Diameter
8 mm
Screw Size
8 mm
Thread Length
29 mm
Shank Length
36 mm
Eye Thickness
9 mm
Eye Outside Diameter
18 mm
Shank Diameter
8 mm
Hole Center-to-End Length
45 mm
Description
Fixed Rod End, Eye Inside Diameter 8 mm, Eye Outside Diameter 18 mm, Eye Thickness 9 mm, Plain, Stainless Steel, Material Grade/Class 17-4, Material Quality Standards ASTM A693, REACH Compliant Yes, Hole Center-to-End Length 45 mm, RoHS Compliant Yes, Shank Diameter 8 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 29 mm, Thread Pitch 1.25 mm, Thread Size M8-1.25, Shank Length 36 mm, Externally Threaded, Shoulder Style Without Shoulder
