  5. Digital Clamp Meter, LCD, 600 A, 1.0 in (25 mm) Jaw Capacity, CAT III 600V Safety Rating

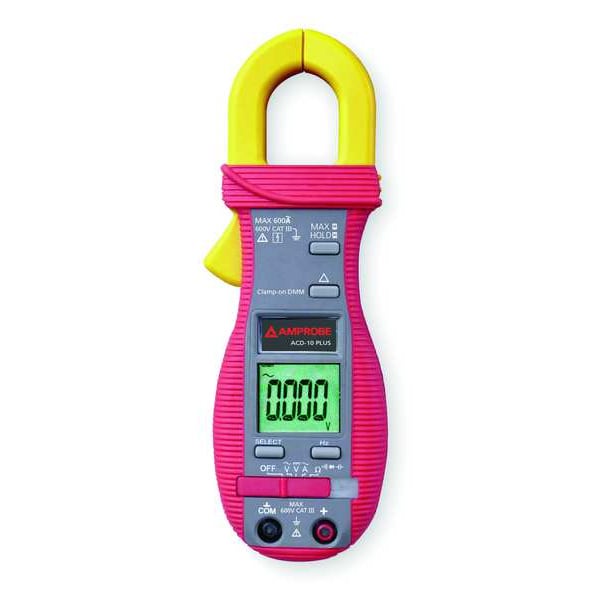

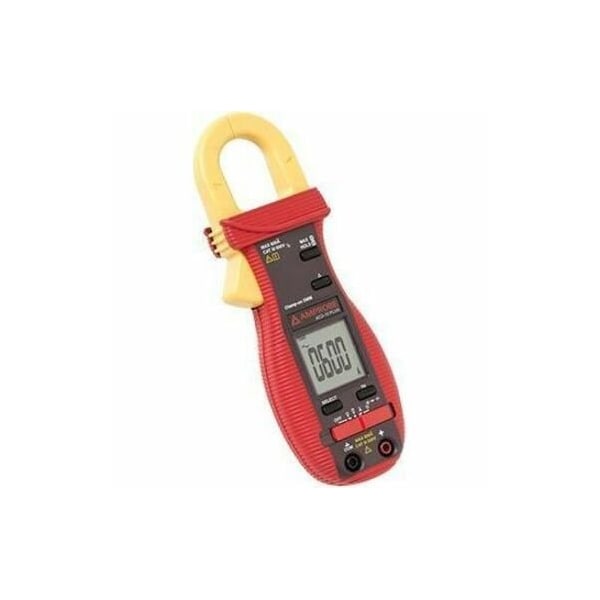

Amprobe Digital Clamp Meter, LCD, 600 A, 1.0 in (25 mm) Jaw Capacity, CAT III 600V Safety Rating ACD-10 PLUS - main

Digital Clamp Meter, LCD, 600 A, 1.0 in (25 mm) Jaw Capacity, CAT III 600V Safety Rating

  • Mfr # ACD-10 PLUS

  • Zoro # G2943263

product price:  $143.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40 megaohm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ACD-10 PLUS
Zoro #
G2943263
UPC #
095969780810
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Maximum Conductor Size
1.0 in (25mm)
Battery Size
CR2032

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40 megaohm
Jaw Capacity
1.0 in (25 mm)
Safety Rating
CAT III 600V
Display
LCD
Jaw Opening
0.4 in
Max. AC Volts
600 V
Calibration Frequency
50 to 500 Hz
Capacitance
3,000 uF
AC Response
TRMS
Battery Type
CR2032
Data Hold
Yes
Auto Ranging
Yes
Peak Hold
Yes
Frequency Counter
10 Hz to100 kHz with Test Leads; 40 Hz to 400 Hz with Jaw
Operating Temp.
32 Degrees to 104 Degrees F
Audible Continuity
Yes
Diode Test
Yes
AC Current Accuracy
+/-2.0% + 5 Digits
Counts
4,000
Special Features
Features Continuity Beeper to Quickly Find Opens and Shorts, Measures Frequency, Resistance and Capacitance, Residential/Commercial and Small Industrial Applications, Rubber Over-Molded Case Absorbs Shock
Auto Power Off
Yes
Includes
Manual, Soft Carrying Pouch, Test Leads
Data Logging
Yes
Maximum DC Voltage Measurement
600 V
Minimum Frequency Measurement
40 Hz
Thermal Imaging
No
Maximum Operating Temperature
87 Degrees F
Maximum AC Current Measurement
600 A
Minimum DC Voltage Measurement
400 mV
Frequency Measurement Accuracy
+/- 0.5%+4 digits
Bluetooth Compatible
No
Calibration Certificate Included
No
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Frequency, Resistance
Waterproof
No
Maximum Storage Temperature
140 Degrees F
Basic AC Current Accuracy
+/- 1.5% + 8 digits
Jaw Style
Clamp-Jaw
Battery Access
Yes
Minimum Storage Temperature
-4 Degrees F
Instrument Counts
4,000
Basic AC Voltage Accuracy
+/- 2.0% + 5 digits
Resistance Measurement Accuracy
+/- 2.0% + 4 digits
Minimum Resistance Measurement
400 microohm
Batteries Included
Yes
Frequency Measurement Resolution
0.001 Hz
Intrinsically Safe
No
Dustproof
No
Minimum Capacitance Measurement
500 nF
AC Response Calculation
TRMS
Minimum AC Current Measurement
40 A
Display Type
LCD
Maximum Frequency Measurement
400 Hz
Basic DC Voltage Accuracy
+/- 1.0% + 4 digits
Removable Screen
No
Capacitance Measurement Accuracy
+/- 3.5% + 6 digits
Minimum AC Voltage Measurement
4 V
Minimum Operating Temperature
39 Degrees F
Maximum Capacitance Measurement
3,000 uF
Current Leakage Testing
No
Maximum Resistance Measurement
40 megaohm
Maximum AC Voltage Measurement
600 V

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement Not Applicable, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, IP Rating Not Rated, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Frequency, Resistance, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes

Restrictions

Hazardous material
