  5. Digital Clamp Meter, LCD, 600 A, 1.0 in (25 mm) Jaw Capacity, CAT III 600V Safety Rating

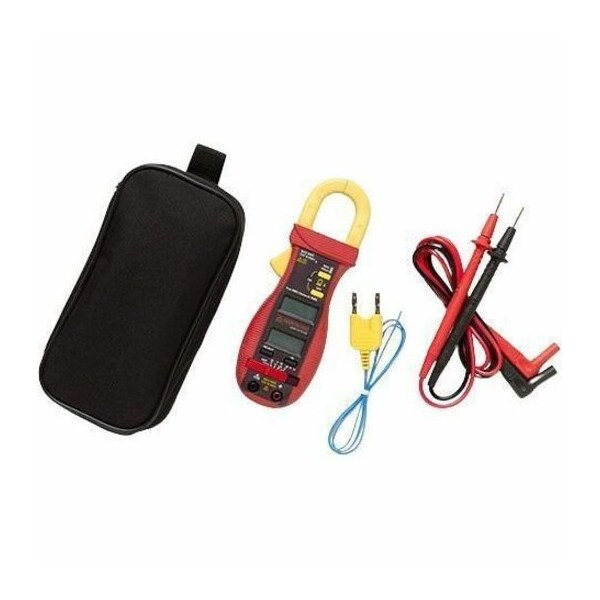

Amprobe Digital Clamp Meter, LCD, 600 A, 1.0 in (25 mm) Jaw Capacity, CAT III 600V Safety Rating ACD-14 PLUS - main

Digital Clamp Meter, LCD, 600 A, 1.0 in (25 mm) Jaw Capacity, CAT III 600V Safety Rating

  • Mfr # ACD-14 PLUS

  • Zoro # G1115283

product price:  $260.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ACD-14 PLUS
Zoro #
G1115283
UPC #
095969780858
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
CR2032

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40
Jaw Capacity
1.0 in (25 mm)
Temp. Range
-4 Degrees to 999 Degrees F
Safety Rating
CAT III 600V
Display
LCD
Jaw Opening
0.2 in
Max. AC Volts
600 V
Calibration Frequency
50 to 60 Hz
Operating Temp.
32 Degrees to 104 Degrees F
Special Features
Dual Displays - Permits Simultaneous Reading of Amperage and Voltage, Frequency Measurement, Micro Amps Measurement for Testing Flame Sensors, Rubber Over-Molded Case
Thermometer Type
Type K Thermocouple
Battery Type
CR2032
AC Response
TRMS
Data Hold
Yes
Auto Power Off
Yes
Auto Ranging
Yes
Audible Continuity
Yes
Includes
ACD-14 PLUS, Soft Carrying Pouch, Test Leads, Type K Thermocouple with Banana Plug
Frequency Counter
10 Hz to100 kHz with Test Leads; 40 Hz to 400 Hz with Jaw
Capacitance
3,000
AC Current Accuracy
+/-2.0% + 5 Digits
Counts
4,000
Peak Hold
Yes
Data Logging
Yes
Diode Test
Yes
Maximum Operating Temperature
999 Degrees F
Instrument Counts
4,000
Current Leakage Testing
No
Maximum Capacitance Measurement
3,000 uF
Waterproof
No
Basic AC Current Accuracy
+/-2.0% + 5 Digits
Jaw Style
Clamp-Jaw
Display Type
LCD
Removable Screen
No
Calibration Certificate Included
No
Battery Access
Yes
Thermal Imaging
No
Minimum Capacitance Measurement
500 nF
Maximum DC Voltage Measurement
600 V
Frequency Measurement Resolution
0.001 Hz
Minimum AC Voltage Measurement
4 V
Maximum Resistance Measurement
40 megaohm
Batteries Included
Yes
Minimum AC Current Measurement
40 A
Minimum Operating Temperature
-4 Degrees F
Intrinsically Safe
No
Dustproof
No
Basic AC Voltage Accuracy
+/-2.0% + 5 Digits
Basic DC Voltage Accuracy
+/-2.0% + 5 Digits
Parameters Measured
AC Current, AC Voltage, DC Voltage, Temperature (K)
Maximum AC Current Measurement
600 A
Bluetooth Compatible
No
AC Response Calculation
Average
Maximum AC Voltage Measurement
600 V

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, AC Response Calculation Average, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement Not Applicable, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, DC Voltage, Temperature, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No, Bluetooth Compatible No
