  5. Digital Clamp Meter, LCD, 800 A, 2.0 in (51 mm) Jaw Capacity, CAT III 600V Safety Rating

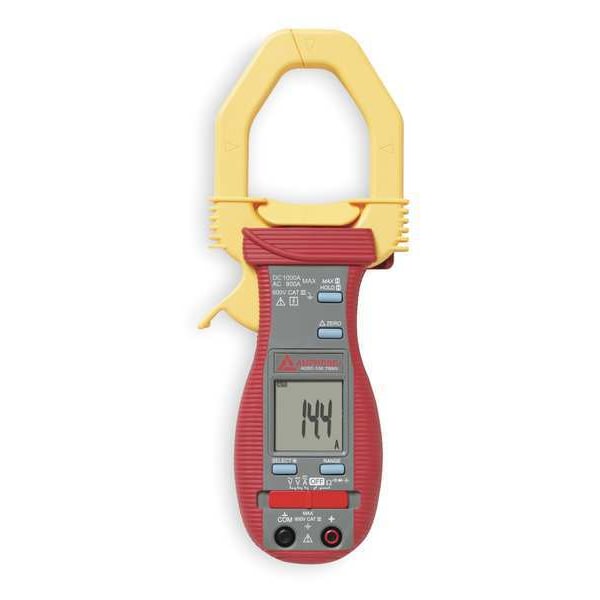

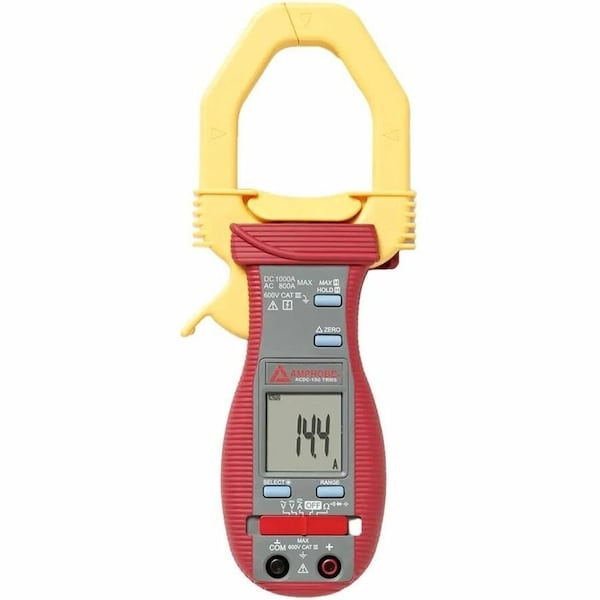

Amprobe Digital Clamp Meter, LCD, 800 A, 2.0 in (51 mm) Jaw Capacity, CAT III 600V Safety Rating ACDC-100 - main

Digital Clamp Meter, LCD, 800 A, 2.0 in (51 mm) Jaw Capacity, CAT III 600V Safety Rating

  • Mfr # ACDC-100

  • Zoro # G3026231

product price:  $251.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
800
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ACDC-100
Zoro #
G3026231
UPC #
095969370004
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
AAA

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
800
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40
Jaw Capacity
2.0 in (51 mm)
Safety Rating
CAT III 600V
Display
LCD
Jaw Opening
2 in
Max. DC Amps
1,000
Max. AC Volts
600 V
Calibration Frequency
40 to 100 Hz
Auto Power Off
Yes
AC Current Accuracy
+/-2.0% + 5 Digits
Capacitance
3,000 uF
Operating Temp.
32 Degrees to 104 Degrees F
Auto Ranging
Yes
Special Features
"Third Hand" - Test Probe Holder, Large, Easy to Read LCD Display, Relative Zero ModeMAX Capture Function for Inrush Current Measurements (30 Ms Response), Rubber Over-Molded Case with Built-In Probes Storage
Audible Continuity
Yes
Battery Type
AAA
Counts
4,000
Includes
ACDC-100, Deluxe Carrying Case, Test Leads
Peak Hold
Yes
AC Response
TRMS
Data Hold
Yes
Data Logging
Yes
Diode Test
Yes
Frequency Counter
40 to 100 Hz (AC Current); 50 to 500 Hz (AC Voltage)
Basic AC Voltage Accuracy
1.0% + 4d
Resistance Measurement Accuracy
0.6% + 4d
Bluetooth Compatible
No
Minimum Resistance Measurement
400 ohm
Minimum AC Voltage Measurement
400 V
Basic AC Current Accuracy
1.5% + 4d
Maximum Resistance Measurement
40 megaohm
Dustproof
No
Waterproof
No
Battery Access
Yes
Batteries Included
Yes
Current Leakage Testing
No
AC Response Calculation
Average
Capacitance Measurement Accuracy
3.5% + 6d
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Inrush AC Current, Resistance
Removable Screen
No
Maximum DC Current Measurement
1,000 A
Instrument Counts
4,000
Basic DC Current Accuracy
+/-1.50 %
Maximum AC Current Measurement
800 A
Minimum DC Voltage Measurement
400 mV
Display Type
LCD
Jaw Style
Clamp-Jaw
Intrinsically Safe
No
Maximum Capacitance Measurement
3,000 uF
Maximum AC Voltage Measurement
600 V
Maximum Frequency Measurement
100 Hz
Minimum AC Current Measurement
400 A
Minimum Capacitance Measurement
500 nF
Maximum DC Voltage Measurement
600 V
Basic DC Voltage Accuracy
0.3% + 3d
Calibration Certificate Included
No
Minimum DC Current Measurement
400 A
Thermal Imaging
No

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, AC Response Calculation Average, Maximum AC Current Measurement 800 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Inrush Current, Resistance, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No
