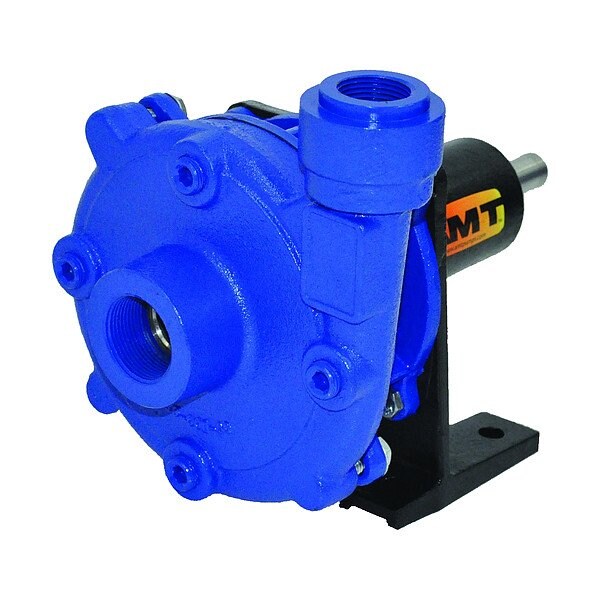

CentrifugalPump, 29/50 hp, 56', 35 gpm

  • Mfr # 3682-95

  • Zoro # G815890442

product price:
$
410.99
/ea
Free Shipping & Returns

Key Features

Intake Type
NPT
Maximum Flow Rate
90 gph
Discharge Rotation
360 Degrees
Shaft Outside Diameter
5/8 in
Wetted Material
Rubber
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3682-95
Zoro #
G815890442
UPC #
726846500848
Country of Origin
United States
Intake Type
NPT
Maximum Flow Rate
90 gph
Discharge Rotation
360 Degrees
Wetted Material
Rubber
Seal Type
Mechanical
For Use With Potable Systems
No
Minimum Media Temperature
40 Degrees F
Pump Housing Material
Cast Iron
Compatible with Media Type
Chemicals, Liquids
Shaft Material
Stainless Steel
Maximum Feet of Head
57 ft
Priming
Manual
Flow Rate @ 20 ft of Head (Maximum)
0.53 gpm
Feet of Head (Minimum)
10 ft
Flow Rate @ 30 ft of Head (Maximum)
0.45 gpm
Impeller Material
Stainless Steel
Minimum Flow Rate
20 gph
Flow Rate @ 10 ft of Head (Maximum)
0.6 gpm
NPSHr
10 ft
Flow Rate @ 50 ft of Head (Maximum)
1.5 gpm
Best Efficiency Flow
20 gpm
Includes
Carbon Elastomer, Ceramic Elastomer, Shaft Seal, Viton Elastomer
Specific Gravity (Maximum)
1
Discharge Type
NPT
Best Efficiency Head
40 ft
Flow Rate @ 15 ft of Head (Maximum)
32 gpm
Seal Material
Buna-N
System Pressure (Maximum)
75 psi
Duty Cycle
Continuous
Maximum Media Temperature
180 Degrees F
Pumping Application
Chemical Transfer, Water Circulation, Cooling and Heat Transfer, Liquid Transfer
Item
Centrifugal Pump
Flow Rate @ 40 ft of Head (Maximum)
0.33 gpm
Shaft Seal Material
Buna-N
Feet of Head (Maximum)
56 ft
Media Temperature - Maximum
180 Degrees F
Discharge Rotation Increments
90 Degrees
Flow Rate (Minimum)
0.333333333 gpm
Shaft Seal Type
Mechanical
Number of Stages
1
Pump Shaft Rotation Direction
CCW
Product Type
Pedestal Pump
Flow Rate (Maximum)
35 gpm
Media Temperature - Minimum
40 Degrees F
Pump Drive Configuration
Bare Shaft
Shut Off Pressure - Maximum
75 psi

Description

Centrifugal Pump, Pump Housing Material Cast Iron, Sized for Horsepower 29/50 hp, Flow Rate @ 10 ft of Head (Maximum) 0.6 gpm, Flow Rate @ 20 ft of Head (Maximum) 0.53 gpm, Flow Rate @ 30 ft of Head (Maximum) 0.45 gpm, Flow Rate @ 40 ft of Head (Maximum) 0.33 gpm, Maximum Feet of Head 57 ft, Discharge Type NPT, Intake Type NPT, Compatible Intake Pipe Size 3/4 in, Compatible Discharge Pipe Size 1/2 in, Suction Lift (Maximum) Not Applicable, Shaft Outside Diameter 5/8 in, Priming Manual
