MFR # 581614
Zoro # G7160501
UPC # 094700677129
Country of Origin Mexico

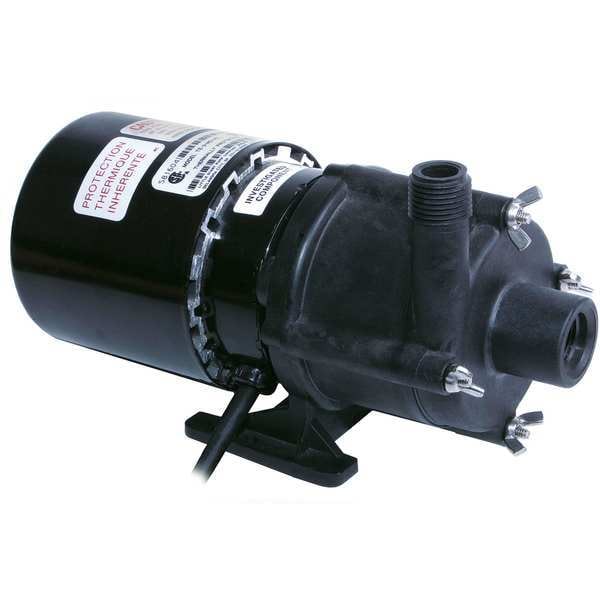

Item Centrifugal Pump
HP 1/25 hp
Voltage 230
Inlet 1/2 in FNPT
Outlet 1/2 in MNPT
Housing Material Glass-Filled Polyphenylene Sulfide
Max. Specific Gravity 1.1
Amps 3.0/1.7
Motor Enclosure Totally Enclosed Fan Cooled
Seal Material Carbon/Ceramic, Viton
Application Highly Corrosive Chemicals and Solutions
Duty Continuous
GPM of Water @ 1 Ft. of Head 10.4
Hz 50/60
Best Efficiency GPM @ Head 9.8 gpm @ 1 ft.
Phase Single
Best Efficiency Range GPM @ Head 45 to 95 gpm @ 160 to 210 ft.
GPM of Water @ 3 Ft. of Head 9.1
Drain Plug No
GPM of Water @ 15 Ft. of Head 7.1
Bearing Type Ball
GPM of Water @ 9 Ft. of Head 7
Max. Liquid Temp. 200 Degrees F
Wetted Materials Carbon and Ceramic Parts, Polyphenylene Sulfide, Viton
Cord 6 ft
Impeller Material Polyphenylene
Motor Type Permanent Split Capacitor
Flow Rate @ 15 ft of Head (Maximum) 2.5 gpm
Frequency 60 Hz
Specific Gravity (Maximum) 1.1
Media Temperature (Maximum) 200 Degrees F
Motor Speed (Maximum) 3,200 RPM
Electrical Connection Type Plug-In
Horsepower (Maximum) 1/25 hp
Discharge Pipe Type MNPT
Intake Pipe Type FNPT
Feet of Head (Maximum) 16.3 ft
Nameplate Voltage 230V AC
Priming Manual
Number of Stages 1
Case Pressure - Maximum 7.1 psi
Pump Drive Configuration Close-Coupled
Viscosity (Maximum) 100 SUS
Shut Off Pressure - Maximum 7.1 psi Chemical Compatibility
See full list of Chemical Compatibility Acetylene,Acid,Alcohol,Aluminum Chloride,Aluminum Chloride 20%,Aluminum Sulfate,Ammonium Chloride,Ammonium Hydroxide,Antifreeze,Barium Chloride,Barium Hydroxide,Barium Sulfate,Benzene,Borax,Butadiene,Butane,Butylene,Calcium Chloride,Calcium Sulfate,Carbon Disulfide,Chlorobenzene,Copper Cyanide,Copper Sulfate 5%,Cyclohexane,Diesel Fuel,Distilled,Ethyl Chloride,Ethylene Chloride,Ethylene Glycol,Ferric Chloride,Ferrous Chloride,Ferrous Sulfate,Formic Acid,Fuel Oil,Gasoline,Heptane,Hexane,Jet Fuel,Kerosene,Lactic Acid,Lubricants,Magnesium Hydroxide,Magnesium Sulfate,Mine,Naphtha,Naphthalene,Cotton Seed Oil,Mineral Oil,Perchloroethylene,Plating Solutions,Potassium Bicarbonate,Potassium Carbonate,Potassium Chlorate,Potassium Chloride,Potassium Dichromate,Potassium Permanganate,Potassium Sulfate,Salt,Soap,Sodium Aluminate,Sodium Bicarbonate,Sodium Bisulfate,Sodium Bisulfite,Sodium Carbonate,Sodium Chlorate,Sodium Chloride,Sodium Chromate,Sodium Cyanide,Sodium Sulfate,Sodium Sulfide,Sodium Thiosulphate,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 1% to 10%,Tomato Juice,Turpentine,Vinegar,Water,Xylene,Zinc Chloride,Zinc Sulfate
Ambient Temperature - Minimum 32 Degrees F
Pump Design End Suction
Full Load Current 1.3 A
Media Temperature - Maximum 200 Degrees F
Best Efficiency Flow 6 gpm
Flow Rate (Maximum) 9.8 gpm
Best Efficiency Head 10 ft
Media Temperature - Minimum 32 Degrees F
Gasket Material FKM
Ambient Temperature - Maximum 77 Degrees F
Hazardous Location Class Not Rated
Pump Mounting Style Base-Mounted
Pumping Application Chemical Transfer
Shaft Seal Type Sealless
Drive Coupling Type Magnetic Coupling
Motor Design Permanent Split Capacitor
Mounting Orientation Horizontal
