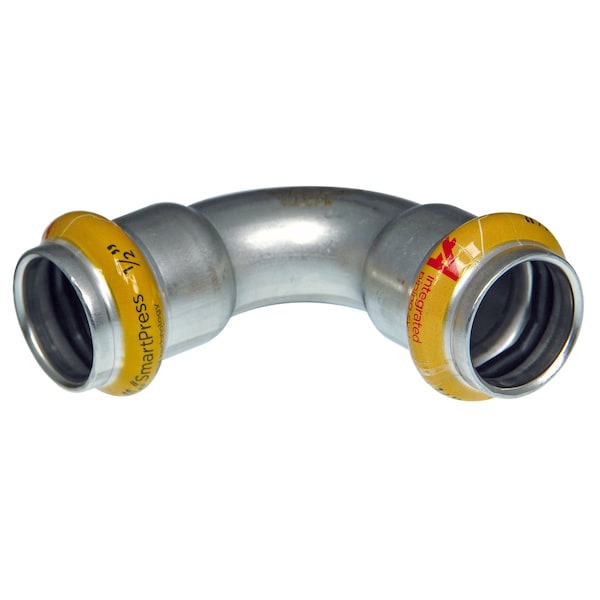

Elbow, SS, Press-fit1/2", Press-fit1/2"
Mfr # 123456842
Zoro # G616015372
product price:Â
$
91.29
/ea
Key Features
Standards
CRN, FM, ANSI/IAPMO/CAN Z1117, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, UL Listed, ULC
Fitting Side 1 Pipe Size
1/2 in
Overall Length
73 mm
Series
SmartPress
Operating Pressure - Maximum
500 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 123456842
- Zoro #
- G616015372
- UPC #
- 8711985493306
- Country of Origin
- United States
Dimensions
- Fitting Side 1 Pipe Size
- 1/2 in
- Overall Length
- 73 mm
- Center-to-End 2 Length
- 2 1/4 in
- Center-to-End 1 Length
- 2 1/4 in
- Fitting Side 2 Pipe Size
- 1/2 in
- Compatible Tube Wall Thickness
- 0.07 in
- Wire Rope Length
- 73 mm
- Length
- 73 mm
Details
- Item
- Crimp Elbow Fitting
- Standards
- CRN, FM, ANSI/IAPMO/CAN Z1117, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, UL Listed, ULC
- Series
- SmartPress
- Operating Pressure - Maximum
- 500 psi
- Color
- Silver
- Fitting Side 1 Connection Type
- Press-fit
- For Media Type
- Compressed Air, Gases, Potable Water
- O-Ring Material
- HNBR
- Operating Temperature - Maximum
- 212 Degrees F
- Compatible Tube Material
- Stainless Steel
- Operating Temperature - Minimum
- -22 Degrees F
- Fitting Side 2 Connection Type
- Press-fit
- Fitting Shape
- Elbow
- Material Grade
- 316L
- Application
- Cooling, Climate Control, Sprinkler, Vacuum
- Fitting Material
- Stainless Steel
Description
Crimp Couplings and Adapters
