Shop APOLLO VALVES

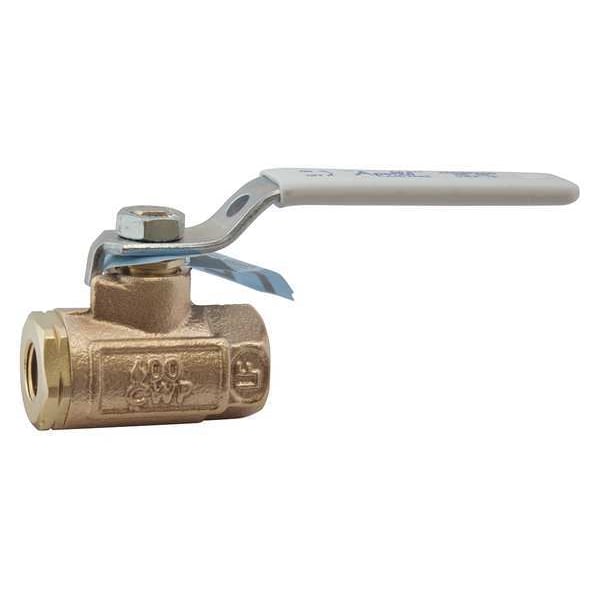

1/4" FNPT Bronze Ball Valve Inline

  • Mfr # 70LF14101

  • Zoro # G5153111

product price:
$
48.55
/ea

Key Features

Ball Material
316 stainless steel
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
70LF14101
Zoro #
G5153111
UPC #
670750536748
Country of Origin
United States

Dimensions

Pipe Size
1/4 in
Overall Length
0.37 in
Nominal Valve Size
1/4 in
Connection Size - Side 1
1/4 in
Handle Length
3.85 in
Connection Size - Side 2
1/4 in
Wire Rope Length
0.37 in

Details

Ball Material
316 stainless steel
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Steam, Water
Connection Type
FNPT x FNPT
Item
Ball Valve
Max. Pressure
600 PSI CWP
Compliance
ISO 9001
Temp. Range
-20 Degrees to 450 Degrees F
Handle Material
PVC, Zinc-Plated Steel
Seat Material
PTFE
Standards
Build America Buy America Act (BABA), Buy American Act (BAA), CRN, Material Quality C89836 (Lead-Free)
Ball Valve Product Group
Manual
Body Material
Bronze
Stem Material
316 Stainless Steel
Stem Type
Blowout Resistant
Features
Blue Hang Tag, White Grip
Handle Type
Lever
Seal Material
PTFE
Type
Two Piece
NSF Certifications for Food and Drinking Water
NSF 61
Color - Valve Handle
Yellow
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
350 Degrees F
Connection Gender - Side 2
Female
Cleaned and Bagged
Not Cleaned and Bagged
Coefficient of Volume (Cv)
0.01
Connection Type - Side 2
NPT
Connection Gender - Side 1
Female
Handle - Locking
Non-Locking
Color - Valve Body
Bronze
Vacuum Service Rating
29 in Hg
Maximum Pressure - Combustible Gas
Not Rated
Connection Type - Side 1
NPT
3-A Standard Compliance
Not Rated
Maximum Pressure - Steam
150 psi
Valve Series
70
Manufacturer Warranty
5 yr
Valve Body Style
Straight
Maximum Pressure - Operating
600 psi
Valve Construction
Two-Piece

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Standard Port, Handle - Locking Non-Locking
