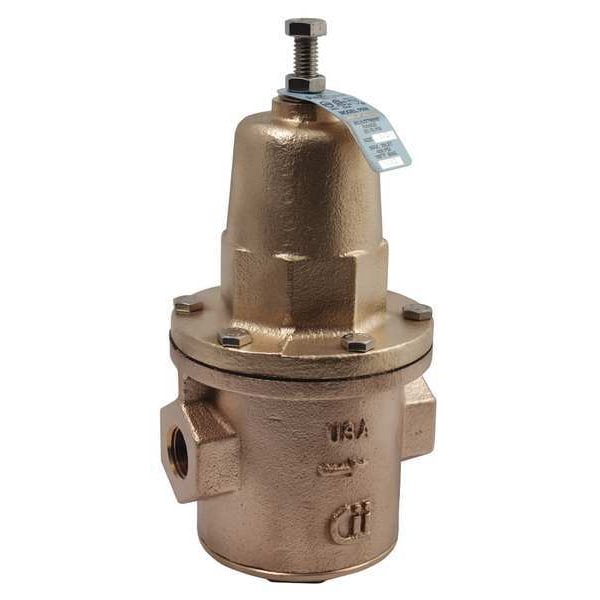

Apollo Valves Water Pressure Reducing Valve, 1 In. 36HLF20501 - main

Water Pressure Reducing Valve, 1 In.

  • Mfr # 36HLF20501

  • Zoro # G5156505

product price: $225.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1"
Inlet Size
1"
Connection Type
FNPT x FNPT
Body Material
Lead Free Bronze and Stainless Steel Material
Max. Pressure
400 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
36HLF20501
Zoro #
G5156505
UPC #
670750518973
Country of Origin
United States

Dimensions

Pipe Size
1"
Inlet Size
1"
Height
9.81"
Length
4.82"
Overall Height
5 5/8 in
Inlet Connection Size
1 in
Overall Width
4 13/16 in
Outlet Connection Size
1 in

Details

Connection Type
FNPT x FNPT
Body Material
Lead Free Bronze and Stainless Steel Material
Max. Pressure
400 psig
Max. Temp.
180 Degrees F
Item
Water Pressure Reducing Valve
Pressure Adjustment Range
25 to 75 psi
Preset Pressure Settings
50 psi
Application
Commercial, Industrial and Institutional
Strainer
No
Standards
ASSE 1003, CSA B356, NSF 372,ARRA
Material
Lead Free Bronze
Valve Type
Super Capacity
Material of Construction
Lead Free Bronze
Connection
FNPT
Factory Set Pressure
50 psi
Operating Pressure - Minimum
25 psi
Inlet Connection Type
NPT
Outlet Connection Type
NPT
Pilot Adjustment - Minimum
25 psig
Pilot Adjustment - Maximum
75 psig
For Media
Water
NSF Certifications for Food and Drinking Water
NSF 372
Fluid Temperature - Maximum
180 Degrees F
Flow Rate - Continuous Maximum
69 gpm
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Operating Pressure - Maximum
400 psi
Includes Strainer
Strainer Not Included

Description

Valve, Pressure Reducing, Material of Construction Lead Free Bronze, Inlet/Outlet 1 In., NPT X NPT Connection, Max. Working Pressure (PSI) 400, Adjustable Range 25-75 psi, Pressure Setting 50 psi, Max. Temp. (F) 180, Height (In.) 7-1/2, Length (In.) 4-81/100, Certification CA AB1953, VT ACT 193, Standards ASSE 1003/CSA B356, Compliance ARRA

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
