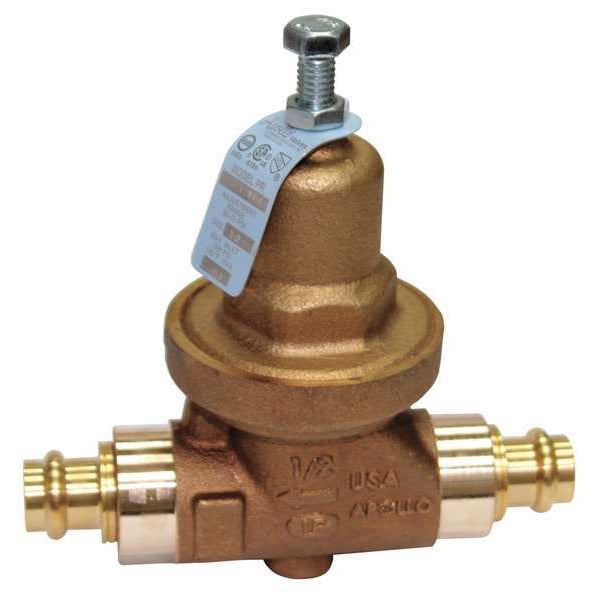

Apollo Valves Water Pressure Reducing Valve, 2 In. 36LF20801PR - main

Water Pressure Reducing Valve, 2 In.

  • Mfr # 36LF20801PR

  • Zoro # G4716135

product price:  $553.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2"
Connection Type
No Union NPT x Press
Body Material
Bronze
Max. Pressure
250 psi
Max. Temp.
180 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
36LF20801PR
Zoro #
G4716135
UPC #
670750759376
Country of Origin
United States

Dimensions

Pipe Size
2"
Height
9 3/4 in
Length
10 25/32 in
Overall Height
5 5/8 in
Inlet Connection Size
2 in
Overall Width
10 11/16 in
Outlet Connection Size
2 in

Details

Connection Type
No Union NPT x Press
Body Material
Bronze
Max. Pressure
250 psi
Max. Temp.
180 Degrees F
Item
Water Pressure Reducing Valve
Valve Type
Standard
Strainer
Yes
Pressure Adjustment Range
5 to 75 psig
Application
Commercial Use, Institutional Use, Residential Use
Standards
ASSE 1003, Build America Buy America (BABA) Act, Buy American Act (BAA), CSA B356
Material
Lead Free Bronze
Preset Pressure Settings
50 psi
Connection
Press
Material of Construction
Low Lead Bronze
Factory Set Pressure
50 psi
Seat Material
EPDM
Disc Material
EPDM
Fluid Temperature - Maximum
180 Degrees F
Flow Rate - Continuous Maximum
127 gpm
Pilot Adjustment - Minimum
25 psig
For Media
Water
NSF Certifications for Food and Drinking Water
NSF 372
Inlet Connection Type
Press
Operating Pressure - Maximum
299 psi
Bonnet Material
Bronze
Outlet Connection Type
Press
Pilot Adjustment - Maximum
75 psig
Operating Pressure - Minimum
25 psi
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Includes Strainer
Strainer Included

Description

Water Pressure Reducing Valve, Material of Construction Low Lead Bronze, Inlet/Outlet 2 In., Press Connection, Max. Working Pressure (PSI) 250, Adjustable Range 25 to 75 psi, Pressure Setting 50 psi, Max. Temp. (F) 180 Degrees , Height (In.) 9-3/4, Length (In.) 10-25/32, Certification NSF/ANSI 61 (2010) SECTION 8 ANNEX F & G, Standards NSF/ANSI 61-8 2010, ASSE 1003-2009,CSA B356, Compliance ARRA

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
