Shop APPLETON ELECTRIC

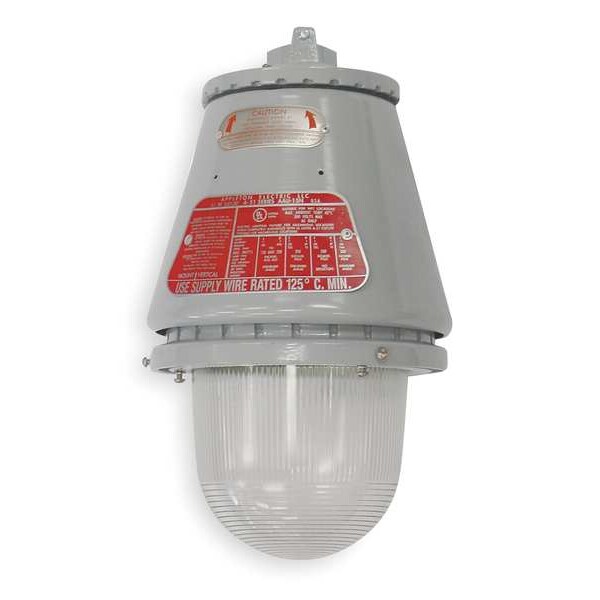

LightFix, Incand, 300W, 12 3/8"L, 12 3/8"W

  • Mfr # AP1575

  • Zoro # G2213784

product price:
$
474.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Standards
Class I, Div 1 and 2, Groups A, B, C, D, Class II, Div 1, 2, Groups E, F, G, Class III, ULE10794, UL1598, UL 1598, UL 844, UL Listed E10444, CSA Standard C22.2 No. 250, C22.2 No. 137, CSA Certified 025428
Lighting Technology
Incandescent
Housing Material
Aluminum
Voltage
120V AC
Fixture Wattage
300
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AP1575
Zoro #
G2213784
UPC #
-
Country of Origin
United States

Dimensions

Length
12 3/8 in
Width
7 in
Height
12-1/4 in
Length (In.)
7
Height (In.)
12-1/4
Width (In.)
7
Nominal Width
7 in
Nominal Height
12 1/4 in
Nominal Length
7 in
Overall Height
13 3/4 in
Nominal Size - Fixtures
1 ft x 1 ft
Overall Width
12 3/8 in
Overall Length
12 3/8 in
Wire Rope Length
12 3/8 in

Details

Item
Hazardous Location Lighting Fixtures
Standards
Class I, Div 1 and 2, Groups A, B, C, D, Class II, Div 1, 2, Groups E, F, G, Class III, ULE10794, UL1598, UL 1598, UL 844, UL Listed E10444, CSA Standard C22.2 No. 250, C22.2 No. 137, CSA Certified 025428
Lighting Technology
Incandescent
Housing Material
Aluminum
Voltage
120V AC
Fixture Wattage
300
Housing Finish
Epoxy Powder Coated
Suggested Lamp Item No.
4V625
Lamp Quantity
1
Match Code
3
Lamp Type
Incandescent
Description/Special Features
For Chemical, Petro-chemical Plants, Refineries
Lamp Included
No
Mounting Bracket Item Number
2V741
Mounting
Pendant
Fixture Type
Explosion Proof Incandescent Fixture
Bulb Designation
300M
Finish
Gray Epoxy Powder Coated
Fixture Item Number
2V738
Lamp Watts
300 W
Fixture Voltage
120V AC
Dimmable
No
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Linkable Up To
Unlinkable
Emergency Battery Backup
No
Max. Fixture Wattage
300 W
Lamp Type - Fixtures
A23, PS25
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
Lamp Watts - Fixtures
300.0
For Max. Bulb Wattage
300 W
CA Title 24 Compliant
No
Mounting Location
Pendant
Number of Bulbs
0
Series
A-51 Incandescent
Color Temperature
Lamp Dependent
For Bulb Type
Incandescent
BAA Compliant
Yes
Safety Rating
Class I, Divisions 1 and 2, Groups C, D, Class II, Divisions 1 and 2, Groups E, F, G, Class III
For Number of Bulbs
1
Mounting Style
Suspended
Temperature Code
T3C
For Bulb Shape
A23/PS25
Warranty
2ACC7
Dimming Method
No Dimming
Maximum Fixture Wattage
300 W
Hazardous Location Rating
Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G
Lumen Selectable
Not Selectable

Description

The APPLETON ELECTRIC AP1575 Fixture is a Hazardous Location Lighting Fixtures, which makes it ideal for locations where flammable vapors or combustible dusts are present. This pendant mount fixture has an epoxy powder coated housing finish. It also features an aluminum housing material. The fixture comes with 300 W lamp watts and 120V AC voltage. Lamp type is dependent on the color temperature of the light emitted by the bulb used in this fixture. The APPLETON ELECTRIC Pendant Mount Fixture is the perfect tool for hazardous location lighting needs.
