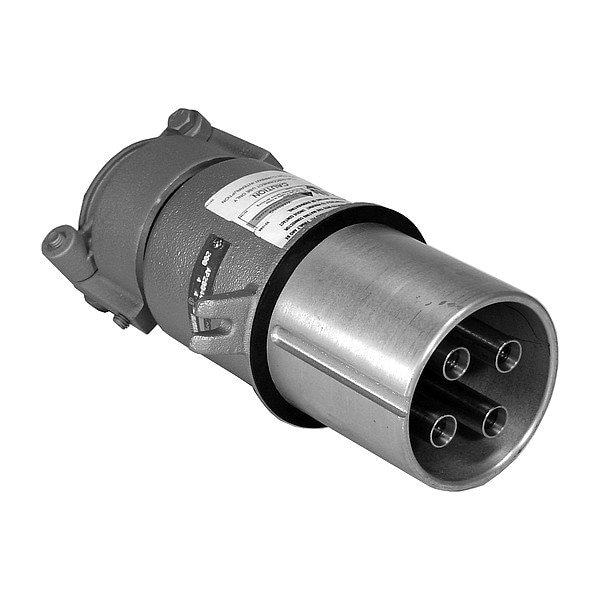

Shop APPLETON ELECTRIC

Plug

  • Mfr # AP20034ERS

  • Zoro # G622639609

product price:
$
1,974.99
/ea
Free Shipping & Returns

Key Features

Standards
CSA, cULus, UL
Housing Color
Gray
Phase
Three
Maximum Wire Size
1/0 AWG
Wire Rope Length
12.7 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AP20034ERS
Zoro #
G622639609
UPC #
781381295475
Country of Origin
Mexico

Dimensions

Maximum Wire Size
1/0 AWG
Wire Rope Length
12.7 in
Outside Diameter
6.4 in
For Minimum Cable Diameter
0.875 in
Minimum Wire Size
1/0 AWG
For Maximum Cable Diameter
2.5 in
Overall Length
12.7 in

Details

Standards
CSA, cULus, UL
Housing Color
Gray
Phase
Three
Housing Material
Aluminum
Minimum Operating Temperature
-13 Degrees F
IP Rating
Not Rated
Voltage Rating
600V AC
Maximum Operating Temperature
104 Degrees F
Current Rating
200 A
Number of Wires
3
NEMA Enclosure Rating
4X
Number of Poles
4
Features
These Units Offer Rough Usage Construction, a Wide Range of Amperage and Feature Widely Spaced Contacts Recessed within an Internal Arc Snuffing Chamber, Insulating Blocks and a Durable Neoprene Sealing Bushing
Reverse Service
Yes
For Environment
Hazardous Location
Polarized
Yes
Wire Connection Type
Wire Leads
Housing Material Finish
Epoxy Powder Coated
Insulation Material
Glass Filled Polyester
Grounding
Grounded
Horsepower Rating
200 hp
Series
Powertite(TM)
Resistance Properties
Weather Resistant
Item
Pin and Sleeve Plug
Grounding Style
Style 1
Power Indicating Light
No

Description

Pin and Sleeve Plug, Current Rating 200 A, Hazardous Location Specification Not Applicable, Horsepower Rating 200 hp, Housing Color Gray, IP Rating Not Rated, Number of Poles 4, Number of Wires 3, Phase Three, Voltage Rating 600V AC, Wire Connection Type Wire Leads, For Maximum Cable Diameter 2.5 in, For Minimum Cable Diameter 0.875 in, Grounding Grounded, Grounding Style Style 1, Housing Material Aluminum, Maximum Wire Size 1/0 AWG, Minimum Wire Size 1/0 AWG, NEMA Enclosure Rating 4X
