Shop APPLETON ELECTRIC

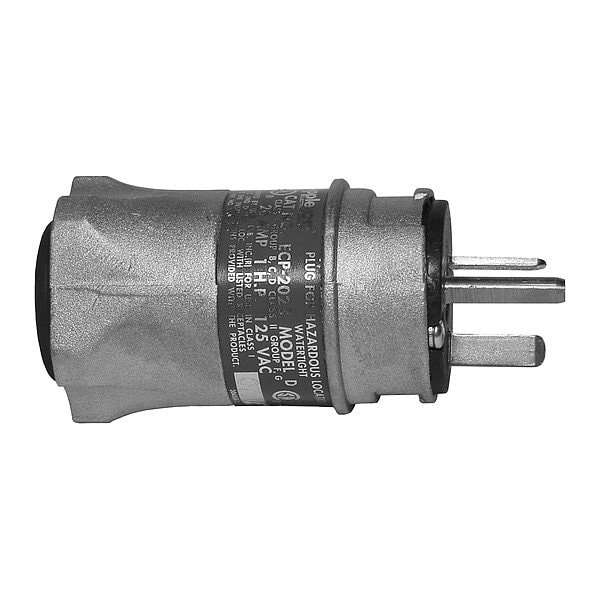

Straight Blade Plug, 1 hp, 20 A, Gray

  • Mfr # ECP2023

  • Zoro # G722706119

product price:
$
200.99
/ea
Free Shipping & Returns

Key Features

Series
U-Line(TM)
Housing Material
Aluminum
Horsepower Rating
1 hp
Blade Material
Brass
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ECP2023
Zoro #
G722706119
UPC #
781381249256
Country of Origin
Mexico

Dimensions

Body Length
2.78 in
Face Diameter
1.75 in
For Minimum Cable Diameter
0.538 in
For Maximum Cable Diameter
0.639 in
Outside Diameter
1.52 in

Details

Series
U-Line(TM)
Housing Material
Aluminum
Item
Straight Blade Plug
Horsepower Rating
1 hp
Blade Material
Brass
Wire Connection Type
Screw Terminals
Shrouded
No
Number of Blades
2
Grade
General Use
NEMA Enclosure Rating
4
Power Indicating Light
No
Phase
Single
Resistance Properties
Corrosion Resistant
Voltage Rating
125V AC
Grounding
Grounded
NEMA Plug Configuration
5-20P
Current Rating
20 A
IP Rating
Not Rated
Housing Color
Gray
Number of Poles
3
Connection Orientation
Straight
For Environment
Hazardous Location
Standards
CSA, UL

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1 hp, Housing Color Gray, IP Rating Not Rated, NEMA Plug Configuration 5-20P, Number of Blades 2, Number of Poles 3, Phase Single, Resistance Properties Corrosion Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.75 in, For Maximum Cable Diameter 0.639 in, For Minimum Cable Diameter 0.538 in, Grade General Use
