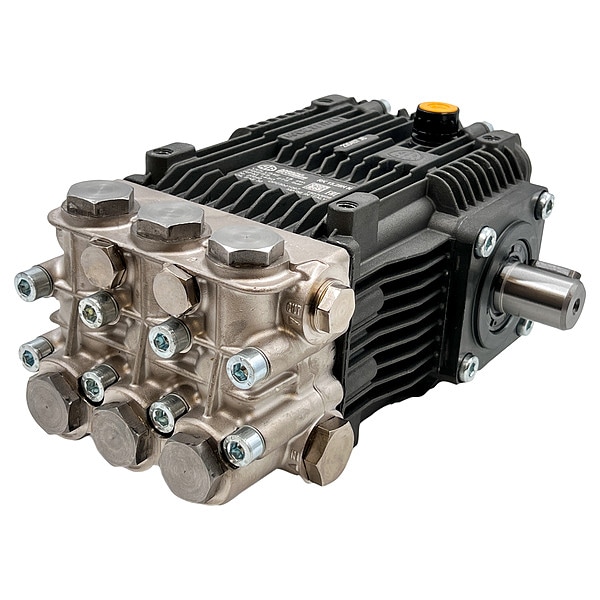

Pressure Plunger Pump, 1,450 RPM, Solid, 1/2 in

  • Mfr # RK1828HN-PKG

  • Zoro # G910474486

product price:  $569.99
/ea
Free Shipping & Returns

Key Features

Lubrication
Oil Bath
Flow Rate (Maximum)
4.7 gpm
Plunger Material
Ceramic
Pump Head Material
Nickel Plated Brass
Required Electric Motor Horsepower (Maximum)
13 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RK1828HN-PKG
Zoro #
G910474486
UPC #
192216214675
Country of Origin
Italy

Dimensions

Shaft Outer Diameter
24 mm
Discharge Connection Size
3/8 in
Intake Connection Size
1/2 in
Discharge Diameter
3/8 in
Inlet Diameter
1/2 in

Details

Item
Pressure Plunger Pump
Lubrication
Oil Bath
Flow Rate (Maximum)
4.7 gpm
Plunger Material
Ceramic
Pump Head Material
Nickel Plated Brass
Required Electric Motor Horsepower (Maximum)
13 hp
Intake Connection Type
FNPT
Drive Type
Belt-Drive
Power Source
Hydraulic Motor
Discharge Pressure (Maximum)
4,000 psi
Motor Speed (Maximum)
1,450 RPM
Piston Design
Triplex
Shaft Type
Solid
Discharge Connection Type
NPT
Required Gasoline Engine Horsepower (Maximum)
20 3/10 hp
Operating Pressure (Maximum)
4,000 psi
Number of Pistons
3
Flange Type
Horizontal Gas Engine
Rated Speed
1,450 RPM
Compatible Drive Method
Belt Drive, Flex Coupling, Hydraulic Drive
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Drive Shaft Connection Type
Keyed
Manifold Material
Nickel Plated Brass
Pumping Element Layout
Inline
Connecting Rod Material
Zinc-Aluminum
Series
RK Series
Engine Shaft Orientation
Horizontal
Pump Drive Configuration
Hydraulic-Driven
Media Temperature - Maximum
140 Degrees F
Number of Plungers
3
Shaft Seal Material
Buna-N

Description

Pressure Plunger Pump, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Discharge Pressure (Maximum) 4,000 psi, Flow Rate (Maximum) 4.7 gpm, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Motor Speed (Maximum) 1,450 RPM, Piston Design Triplex, Pump Head Material Nickel Plated Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 13 hp, Required Gasoline Engine Horsepower (Maximum) 20 3/10 hp, Lubrication Oil Bath, Shaft Outer Diameter 24 mm
