Shop ARO

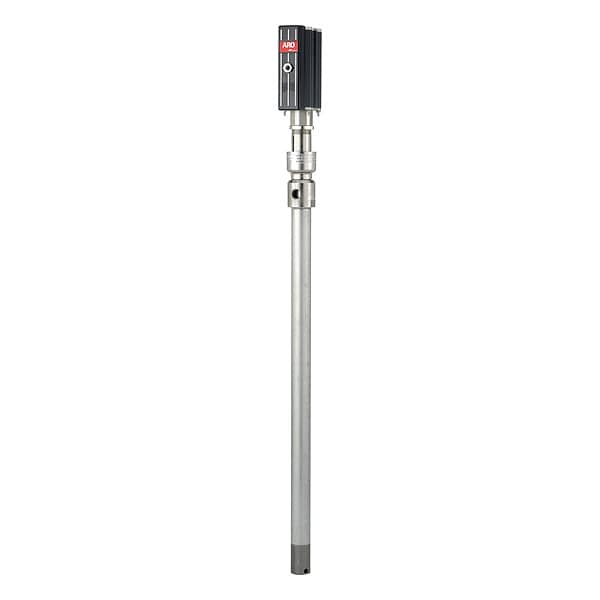

Air Drum Pump, 2.1 gpm, 600 psi, 4:1

  • Mfr # NM2304A-41-C11

  • Zoro # G612486770

product price:
$
3,134.99
/ea
Free Shipping & Returns

Key Features

Overall Length
55 5/8 in
Max. Flow Rate
2.1 gpm
Air Inlet Size
1/4 FNPT
Features
2-Ball Pumps Deliver the Constant Flow Rate and Pressure Needed for Consistent and Efficient Coatings Applications, 2-Ball Pumps Generate Pressure to Handle Extrusion of Low-to Medium-Viscosity, Aro(R) Wash Pump Packages are Portable and Offer the Right Option for Industrial Cleaning Applications
For Container Size
55 gal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NM2304A-41-C11
Zoro #
G612486770
UPC #
663023136929
Country of Origin
United States

Dimensions

Overall Length
55 5/8 in
Air Inlet Size
1/4 FNPT
For Container Size
55 gal
Air Inlet Connection Size
1/4 in
Wire Rope Length
55 5/8 in

Details

Item
Air Drum Pump
Max. Flow Rate
2.1 gpm
Features
2-Ball Pumps Deliver the Constant Flow Rate and Pressure Needed for Consistent and Efficient Coatings Applications, 2-Ball Pumps Generate Pressure to Handle Extrusion of Low-to Medium-Viscosity, Aro(R) Wash Pump Packages are Portable and Offer the Right Option for Industrial Cleaning Applications
Max. Viscosity
8,000 cps
Max. Air Pressure
150 psi
Max. Oil Flow
2.1 gpm
Max. Outlet Pressure
600 psi
For Media Type
Grease Lubricants, Light Oils
Noise Level
85 dBA
Power Source
Air
For Use With
Grease Lubricants, Light Oils
Min. Air Pressure
0 psi
Ratio
4:1
Compatible Chemicals
Grease Lubricants, Light Oils
Housing Material - Pumps
Carbon Steel
Wetted Materials
Carbon Steel, Buna-N, Stainless-Steel, Acetal, UHMW-PE
For Container Type
Drum
Metered
No
Maximum Outlet Pressure
600 psi
Air Inlet Connection Type
FNPT
Maximum Oil Flow
2.1 gpm
Minimum Air Pressure
0 psi
Maximum Viscosity
8,000 cps
Maximum Air Pressure
150 psi
Chemical Compatibility
Grease, Oil
Housing Material
Steel
Maximum Flow Rate
2.1 gpm
Meter Type Included
No Meter Included
Wetted Material
Acetal/Buna-N/Carbon Steel/Stainless Steel/UHMWPE
Power Source - TS Only
Air
Pressure Ratio
4:1
Power Source - old
Air

Description

Air Operated Drum Pump, Max. Air Pressure 150 psi, Overall Length 55 5/8 in, Noise Level 85 dBA, Max. Viscosity 8,000 cps
