  9. AirOprDiaphPmp, Flange, TPV/PP, 1/4in, 48gpm
Shop All Diaphragm Pumps
Aro

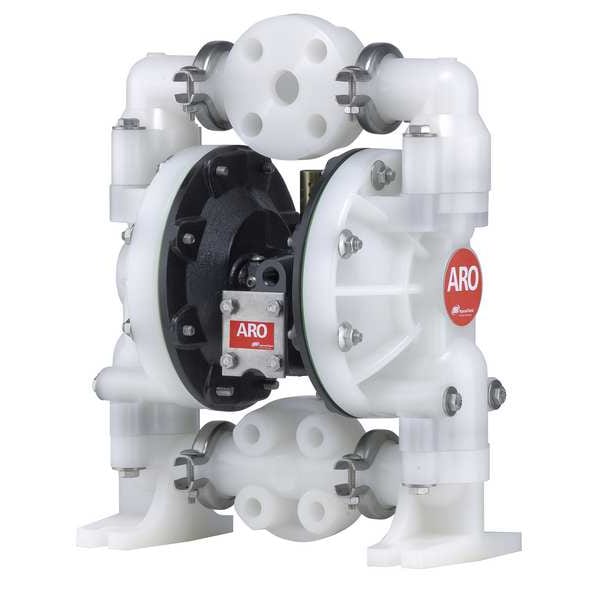

AirOprDiaphPmp, Flange, TPV/PP, 1/4in, 48gpm

product price: $1,353.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Aluminum
  • Diaphragm Material - Pumps Santoprene
  • Max. Flow 47 gpm
  • Pump Operation Type Air
  • Inlet/Outlet Size 1 in
See all product information

Product Information

Dimensions

Inlet/Outlet Size 1 in
Air Inlet Size 1/4 in NPTF
Height 16 in
Length 10 1/16 in
Width 8 1/16 in
Max. Dia. Solids 1/8 in
Overall Height 16 in
Media Discharge Connection Size 1 in
Overall Width 8.1 in
Media Intake Connection Size 1 in
Solid Diameter (Maximum) 0.13 in
Air Intake Connection Size 1/4 in
Overall Length 21.7 in

Details

Housing Material - Pumps Aluminum
Diaphragm Material - Pumps Santoprene
Max. Flow 47 gpm
Item - Air Operated Pumps Diaphragm Pump
Pump Operation Type Air
Connection Style NPTF
Manifold Connection Single Port
Item Air Operated Diaphragm Pump
Max. Flow GPM 47 gpm
Ball Material Santoprene
Max. Operating Pressure 120 psi
Diaphragm Material Santoprene
Standards ATEX Certified
Valve Type Ball
Check Seat Material Polypropylene
Chemical Compatibility Ammonium Hydroxide, Calcium Carbonate, Diesel Exhaust Fluid, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water
Series 6661XX
Flow Rate @ 120 psi 48 gpm
Priming Self-Priming
Media Intake Location Bottom, Center
Air Intake Connection Type Flange
NPSHr 40 ft of head
Viscosity (Maximum) 40,000 cps
Flow Rate @ 40 psi 36 gpm
Flow Rate @ 80 psi 44 gpm
Media Temperature (Minimum) -40 Degrees F
Valve Material Santoprene
Flow Rate @ 60 psi 40.8 gpm
Media Temperature (Maximum) 225 Degrees F
Air Consumption (Maximum) 45 scfm
Wetted Housing Material Aluminum
Feet of Head (Maximum) 289 ft
For Use With Potable Systems Yes
Flow Rate @ 100 psi 46 gpm
Operating Pressure (Maximum) 120 psi
Manifold Connection Type Flange
Flow Rate @ 50 psi 39 gpm
Flow Rate @ 70 psi 42 gpm
Air Intake Pressure (Maximum) 120 psi
Pump Assembly Type Bolt
Series Family Pro
Flow Rate (Maximum) 48 gpm
Media Discharge Location Center, Top
Media Intake Connection Type Flange
Non-Wetted Housing Material Aluminum
Media Discharge Connection Type Flange
Nameplate Voltage N
Flow Rate @ 90 psi 45.2 gpm

Description

Air Operated Diaphragm Pump, Air Consumption (Maximum) 45 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type Flange, Check Seat Material Polypropylene, Diaphragm Material Santoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 48 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type Flange, Media Discharge Location Center, Top, Media Intake Connection Size 1 in, Media Intake Connection Type Flange
