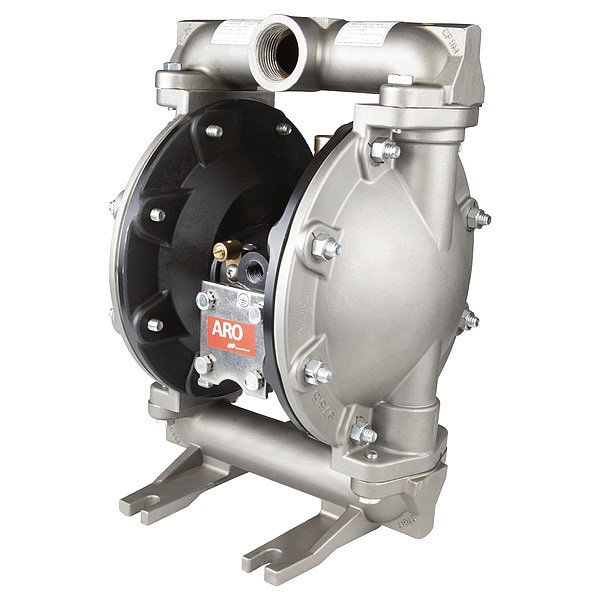

Diaphragm Pump, Ss/Ss/Ptfe/Ptfe, 1", 66610

  • Mfr # 666101-244-C

  • Zoro # G4326902

product price:  $3,006.43
/ea
Free Shipping & Returns

Key Features

Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE/Santoprene
Valve Type
Ball
Air Intake Connection Size
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
666101-244-C
Zoro #
G4326902
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/4 in
Overall Width
6.1 in
Overall Height
12.4 in
Overall Length
8.6 in
Media Intake Connection Size
1 in
Media Discharge Connection Size
1 in
Solid Diameter (Maximum)
0.12 in
Manufacturers Warranty Length
5 yr

Details

Item
Diaphragm Pump
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE/Santoprene
Valve Type
Ball
Air Intake Connection Type
NPT
Check Seat Material
Aluminum
Diaphragm Material
PTFE, Santoprene
Media Temperature (Maximum)
212 Degrees F
Operating Pressure (Maximum)
120 psi
Standards
ATEX Certified
Pump Operation Type
Air
Flow Rate @ 120 psi
35 gpm
Air Intake Pressure (Maximum)
120 psi
Media Intake Location
Bottom
Flow Rate (Maximum)
35 gpm
Media Intake Connection Type
NPT
Media Discharge Connection Type
NPT
Series
PRO
Manifold Connection Type
NPT
Wetted Housing Material
Aluminum
Mounting Hardware Material
Steel
Media Discharge Location
Top
Media Intake Port Configuration
Center Horizontal
Manifold Connection Standard
NPT
Feet of Head (Maximum)
270 ft
Center Section Material
Aluminum
Diaphragm Reinforcement
Not Reinforced
Diaphragm Backing Material
Santoprene
Fluid Chamber Assembly Type
Bolted
Material Conductivity
Conductive
Air Consumption (Maximum)
45 scfm
Media Discharge Port Configuration
Center Horizontal
Diaphragm Base Material
PTFE
Displacement Per Stroke
0.08 gal
Includes Solenoid
No Solenoid Included
Wetted Body Material
316 Stainless Steel
Manifold Port Connection Type
Single Port
For Use With Potable Systems
No
Viscosity (Maximum)
40,000 cps

Description

Diaphragm Pump, Air Consumption (Maximum) 45 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Aluminum, Diaphragm Material PTFE, Santoprene, Feet of Head (Maximum) 270 ft, Flow Rate (Maximum) 35 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1 in, Media Intake Connection Type NPT, Media Intake Location Bottom
