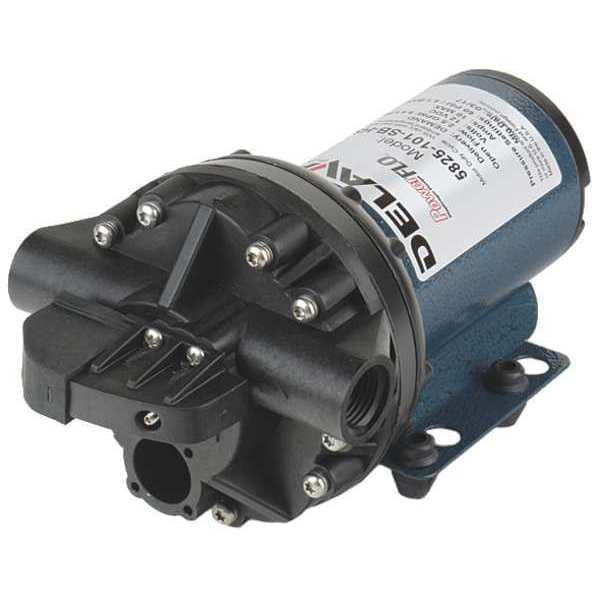

Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 2.5 GPM 140 Degrees F

  • Mfr # 5825A-101-SB-HS

  • Zoro # G1593958

product price:  $172.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Air Intake Connection Size
1/2 in FNPT
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5825A-101-SB-HS
Zoro #
G1593958
UPC #
830344009342
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in FNPT
Overall Length
9.1 in
Overall Height
4.6 in
Overall Width
5 in
Media Intake Connection Size
1/2 in
Media Discharge Connection Size
1/2 in
Discharge Connection Size
1/2 in
Intake Connection Size
1/2 in
Shaft Outer Diameter
8 mm
Inlet Diameter
1/2 in
Discharge Diameter
1/2 in
Wire Rope Length
9.1 in

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
60 psi
Inlet/Outlet
1/2 FNPT
Pressure Off
60 psi
Diaphragm Design
Five Chamber
Pressure On
20 psi
Features
Heat Sink On Motor to Keep It Cool
Motor Type
Totally enclosed Nonventilated
Type
Diaphragm
Prime in Feet
8
Agency Compliance
CE/NSF
Fuse Amps
10 A
Pressure Switch
Yes
Standards
NSF Certified
Pump Operation Type
Electric
Motor Enclosure
Totally Enclosed Non-Ventilated
Flow Rate @ 20 psi
2.2 gpm
Series
5800
Flow Rate @ 0 psi
2.5 gpm
Current
10 A
Nameplate Voltage
12V DC
Diaphragm Chamber Design
5
Flow Rate (Maximum)
2 gpm
Flow Rate @ 40 psi
2 gpm
Priming
Self-Priming
Media Intake Connection Type
FNPT
Media Discharge Connection Type
FNPT
Housing Material
Polypropylene
Intake Connection Type
FNPT
Check Valve Material
FKM
Discharge Connection Type
FNPT
Pressure Switch Off Pressure
100 psi
Pump Technology
Diaphragm
Includes Regulator
No Regulator Included
Includes Heat Sink
Heat Sink Included
Chemical Compatibility
Fertilizer, Herbicide
Self-Priming Lift - Maximum
12 ft
Gasket Material
FKM
Number of Diaphragms
1
Motor Speed - Maximum
2,200 RPM
Power Source
Electric
Full Load Current
22.5
Feet of Head (Maximum)
138.4 ft
Electrical Connection Type
Power Cord with Plug
Media Temperature - Maximum
140 Degrees F
Pump Drive Configuration
Electric Motor Unit
Fluid Head Material
Polypropylene
Discharge Pressure - Maximum
100 psi
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Phase
Single
Includes Gearbox
No Gearbox Included
Pump Control Type
Demand
Pressure Switch On Pressure
90 psi
Power Source - TS Only
Electric

Description

Diaphragm Pump, Operating Pressure (Maximum) 60 psi, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material FKM, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 2 gpm, Housing Material Polypropylene, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards NSF Certified, Feet of Head (Maximum) 138.4 ft
