  9. Double Diaphragm Pump, Aluminum, Air Operated, Nitrile, 12 GPM
Shop All Diaphragm Pumps
Aro

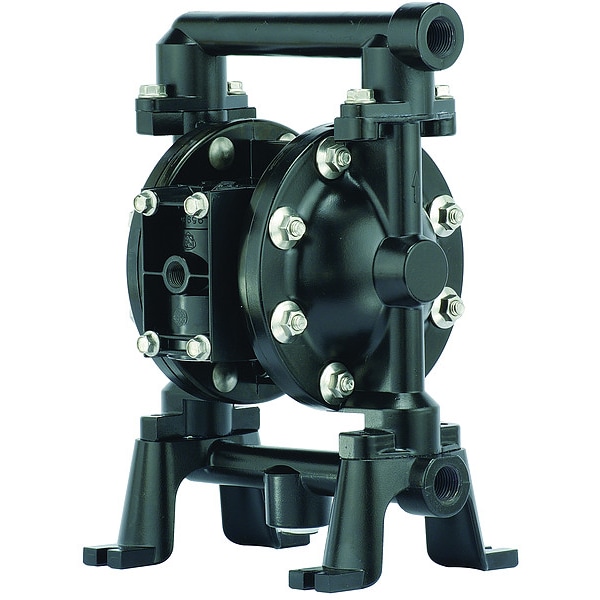

Double Diaphragm Pump, Aluminum, Air Operated, Nitrile, 12 GPM

product price: $935.10
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Aluminum
  • Diaphragm Material - Pumps Nitrile
  • Max. Flow 12 gpm
  • Pump Operation Type Air
  • Max. Temp - Pumps 150 Degrees F
See all product information

Product Information

Dimensions

Inlet/Outlet Size 1/2 in
Air Inlet Size 1/4 in FNPT
Manufacturers Warranty Length 5 yr
Max. Dia. Solids 3/32 in
Length 8 7/32 in
Height 11 3/4 in
Width 8 3/16 in
Overall Length 8.2 in
Overall Width 8.1 in
Overall Height 11.8 in
Solid Diameter (Maximum) 0.09 in
Air Intake Connection Size 1/4 in
Media Intake Connection Size 1/2 in
Media Discharge Connection Size 1/2 in

Details

Housing Material - Pumps Aluminum
Diaphragm Material - Pumps Nitrile
Max. Flow 12 gpm
Item - Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp - Pumps 150 Degrees F
Connection Style NPT
Agency Compliance ATEX, CE, REACH, RoHS
Manifold Connection Single Port
Self-Priming Dry 10 ft
Max. Operating Pressure 100 psi
Body Material Aluminum
Item Double Diaphragm Pump
Operation Type Air Operated
Self-Priming Wet 15 ft
Max. Temp. 150 Degrees F
Diaphragm Material Buna-N
Max. Flow GPM 12 gpm
Valve Type Ball
Check Seat Material Polypropylene
Ball Material Nitrile
Standards ATEX Certified
Priming Self-Priming
Flow Rate @ 100 psi 12.4 gpm
Flow Rate @ 90 psi 12.3 gpm
Wetted Housing Material Aluminum
Air Intake Connection Type NPT
Flow Rate @ 60 psi 11.7 gpm
Flow Rate @ 70 psi 12.2 gpm
Media Temperature (Minimum) 10 Degrees F
Media Intake Connection Type NPTF
For Use With Potable Systems No
Flow Rate (Maximum) 12.4 gpm
Manifold Connection Type NPT
Air Intake Pressure (Maximum) 100 psi
Flow Rate @ 50 psi 10.9 gpm
Media Intake Location Bottom, Side
Pump Assembly Type Bolt
Feet of Head (Maximum) 255 ft
Operating Pressure (Maximum) 100 psi
Mounting Hardware Material Stainless Steel
Chemical Compatibility Alcohol, Antifreeze, Oil-Based Paint, Oils, Water
Flow Rate @ 40 psi 9.5 gpm
Flow Rate @ 80 psi 12.3 gpm
Media Discharge Connection Type NPTF
NPSHr 39 ft of head
Series PD05X
Viscosity (Maximum) 15,000 cps
Non-Wetted Housing Material Plastic
Valve Material Buna-N
Media Discharge Location Center, Side
Media Temperature (Maximum) 180 Degrees F
Series Family Compact
Nameplate Voltage N
Air Consumption (Maximum) 20 scfm

Description

Double Diaphragm Pump, Air Consumption (Maximum) 20 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material Buna-N, Feet of Head (Maximum) 255 ft, Flow Rate (Maximum) 12.4 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Side, Media Intake Connection Size 1/2 in, Media Intake Connection Type NPTF
