Shop DAYTON

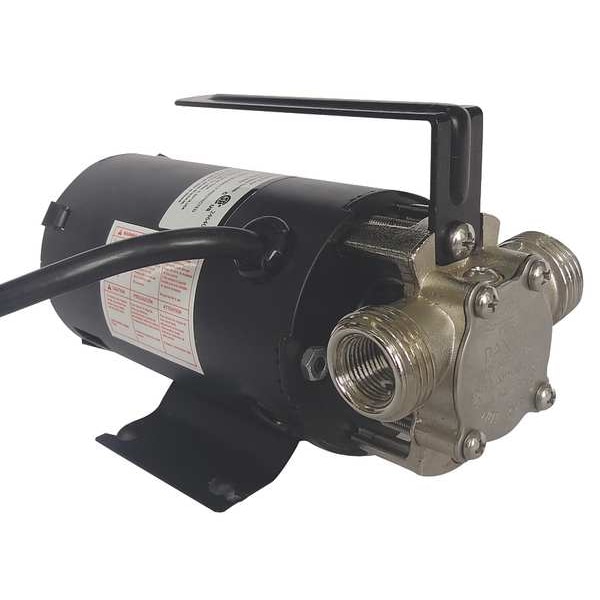

Utility Pump, 115 VAC

  • Mfr # 5UXL7

  • Zoro # G1507432

product price:
$
226.99
/ea
Free Shipping & Returns

Key Features

HP
1/10 hp
Voltage
115 V
Amps AC
1.6 A
Motor Enclosure
Open Drip Proof
Duty
Intermittent
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5UXL7
Zoro #
G1507432
UPC #
190735353554
Country of Origin
China

Dimensions

Shaft Dia. (In.)
63/200 in
Length (In.)
6 3/4 in
Width (In.)
4 in
Height (In.)
4 1/2 in
Cord Length
6 ft
Overall Width
4 in
Overall Length
6.8 in
Overall Height
4.5 in
Shaft Outer Diameter
3/8 in
Discharge Connection Size
3/4 in
Media Intake Connection Size
3/8 in
Impeller Diameter
1 3/8 in
Discharge Internal Diameter
3/8 in
Inlet External Diameter
3/4 in
Inlet Internal Diameter
3/8 in
Discharge External Diameter
3/4 in
Wire Rope Length
6.8 in
Length
6.8 in

Details

Item
Utility Pump
HP
1/10 hp
Voltage
115 V
Amps AC
1.6 A
Motor Enclosure
Open Drip Proof
Duty
Intermittent
Inlet/Outlet (In.)
3/8 ID; 3/4 OD Garden Hose
GPM of Water @ 5 Ft. of Head
5.2 gpm
Max. Head (Ft.)
37.3 ft
GPH of Water @ 5 Total Ft. of Head
342 gph
GPM of Water @ 20 Ft. of Head
3.05 gpm
GPH of Water @ 10 Ft. of Head
300 gph
GPH of Water @ 20 Ft. of Head
270 gph
Bearings
Ball
Pumps Up To (Ft.)
48.3 ft
Max. Liquid Temp. (F)
140 Degrees F
Seals
Buna N Radial Lip
GPM of Water @ 10 Ft. of Head
4.43 gpm
Max. Suction Lift (Ft.)
7 ft
GPM of Water @ 30 Ft. of Head
2.3 gpm
Cord
6 ft
Shaft Material
Stainless Steel
Thermal Protection
Automatic
Self-Priming
Yes
GPH of Water @ 1 Ft. of Head
360 gph
RPM
4,000 RPM
Application
Use to Empty Waterbeds, Drain Water Heaters or Aquariums, Pump Out Basement, Transfer Water to RV, Pump Boat Bilges, Pump Out Stock Tanks or Water Transfer. For Use With Nonflammable Liquids
Impeller
Buna-N
Body Material
Nickel-Plated Brass
Includes
Gasket, Two Impellers
GPH of Water @ 40 Total Ft. of Head
90 gph
Motor Type
Universal AC/DC
GPH of Water @ 30 Total Ft. of Head
198 gph
Type
Compact Flexible Impeller
Impeller Material
Buna-N
Housing Material
Brass
Priming
Self-Priming
Media Temperature - Minimum
40 Degrees F
Wetted Material
Brass, Buna-N
Flow Rate @ 1 ft of Head - Maximum
5.7 gpm
Media Intake Connection Type
MGHT
Phase
Single
Flow Rate @ 10 ft of Head - Maximum
4.4 gpm
Nameplate Voltage
115V AC
Flow Rate @ 20 ft of Head - Maximum
3.1 gpm
Operating Pressure - Maximum
16.2 psi
Frequency
60 Hz
Bearing Material
Stainless Steel
Suction Lift - Maximum
7 ft
Motor Mounting Type
Horizontal
Seal Material
Buna-N
Media Temperature - Maximum
140 Degrees F
Current
1.6 A
Horsepower - Maximum
1/10 hp
Feet of Head - Maximum
37.3 ft
Motor Speed - Maximum
4,000 RPM
Flow Rate @ 30 ft of Head - Maximum
1.4 gpm
Seal Type
Lip
Bearing Type
Ball
Discharge Connection Type
Hose
For Media Type
Water
Inlet External Standard
Garden Hose Thread
Inlet Internal Gender
Female
Discharge Internal Standard
NPT
Discharge Internal Gender
Female
Discharge External Standard
Garden Hose Thread
Inlet Internal Standard
NPT
Inlet External Gender
Male
Discharge External Gender
Male

Description

Utility Pump, Housing Material Brass, Horsepower - Maximum 1/10 hp, Nameplate Voltage 115V AC, Flow Rate @ 10 ft of Head - Maximum 4.4 gpm, Viscosity - Maximum Not Applicable, Feet of Head - Maximum 37.3 ft, Discharge Connection Size 3/4 in, Media Intake Connection Size 3/8 in, Media Intake Connection Type MGHT, Impeller Material Buna-N, Discharge Connection Type Hose, Cord Length 6 ft, Priming Self-Priming, Operating Pressure - Maximum 16.2 psi, Suction Lift - Maximum 7 ft

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
