  9. Double Diaphragm Pump, Aluminum, Air Operated, Santoprene, 12 GPM

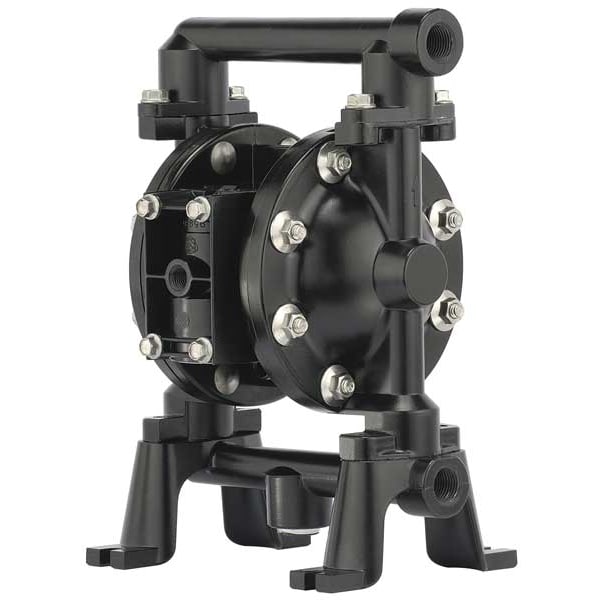

Aro Double Diaphragm Pump, Aluminum, Air Operated, Santoprene, 12 GPM PD05R-AAS-PAA-B - main

Double Diaphragm Pump, Aluminum, Air Operated, Santoprene, 12 GPM

  • Mfr # PD05R-AAS-PAA-B

  • Zoro # G3327642

product price: $1,006.45
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene®
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PD05R-AAS-PAA-B
Zoro #
G3327642
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/4 in FNPT
Manufacturers Warranty Length
5 yr
Overall Height
11.8 in
Overall Length
8.2 in
Overall Width
8-3/16 in
Media Intake Connection Size
1/2 in
Media Discharge Connection Size
1/2 in
Solid Diameter (Maximum)
3/32 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene®
Valve Type
Ball
Air Consumption (Maximum)
20 scfm
Air Intake Connection Type
NPT
Check Seat Material
Polypropylene
Diaphragm Material
Santoprene
Media Temperature (Maximum)
150 Degrees F
Media Temperature (Minimum)
-40 Degrees F
Operating Pressure (Maximum)
100 psi
Self-Priming Dry
10 ft
Pump Operation Type
Air
Self-Priming Wet
15 ft
Agency Compliance
CE, REACH, RoHS
Standards
ATEX Certified
Inlet/Outlet
1/2 in
NPSHr
39 ft of head
Nameplate Voltage
N
Flow Rate @ 70 psi
12.2 gpm
For Use With Potable Systems
No
Viscosity (Maximum)
15,000 cps
Wetted Housing Material
Aluminum
Flow Rate @ 50 psi
10.9 gpm
Flow Rate @ 40 psi
9.5 gpm
Flow Rate @ 100 psi
12.4 gpm
Flow Rate @ 90 psi
12.3 gpm
Manifold Connection Type
NPT
Air Intake Pressure (Maximum)
100 psi
Media Intake Location
Bottom, Side
Series Family
Compact
Priming
Self-Priming
Media Discharge Connection Type
NPTF
Media Intake Connection Type
NPTF
Flow Rate @ 80 psi
12.3 gpm
Media Discharge Location
Center, Side
Flow Rate @ 60 psi
11.7 gpm
Series
PD05X
Flow Rate (Maximum)
12.4 gpm
Feet of Head (Maximum)
255 ft
Mounting Hardware Material
Stainless Steel
Chemical Compatibility

Description

Double Diaphragm Pump, Air Consumption (Maximum) 20 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material Santoprene, Feet of Head (Maximum) 255 ft, Flow Rate (Maximum) 12.4 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Side, Media Intake Connection Size 1/2 in, Media Intake Connection Type NPTF
