Shop DELAVAN FLUID POWER

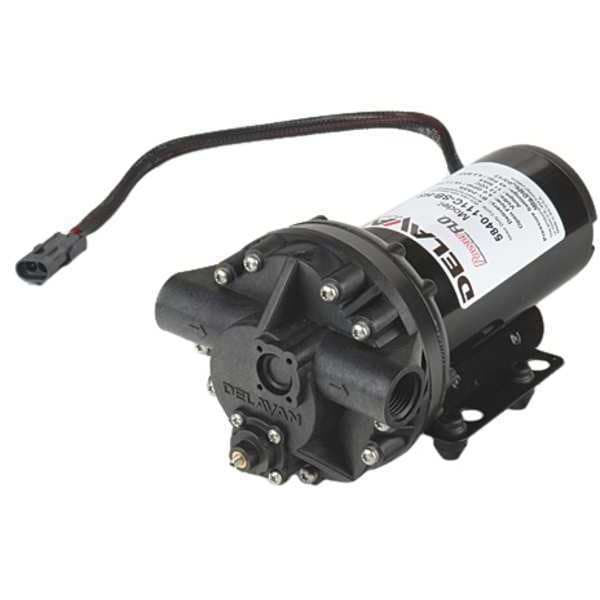

Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 4.0 GPM 140 Degrees F

  • Mfr # 5840-111C-SB-HS

  • Zoro # G1593258

product price:  $197.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Air Intake Connection Size
1/2 in FNPT
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5840-111C-SB-HS
Zoro #
G1593258
UPC #
830344009229
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in FNPT
Overall Width
5 in
Overall Height
4.6 in
Overall Length
9.1 in
Media Intake Connection Size
1/2 in
Media Discharge Connection Size
1/2 in
Intake Connection Size
1/2 in
Discharge Connection Size
1/2 in
Discharge Diameter
1/2 in
Shaft Outer Diameter
8 mm
Inlet Diameter
1/2 in

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
45 psi
Diaphragm Design
Five Chamber
Pressure Off
100 psi
Fuse Amps
15 A
Features
Heat Sink On Motor to Keep It Cool
Pressure Switch
No
Prime in Feet
8
Type
Diaphragm
Agency Compliance
CE/NSF
Inlet/Outlet
1/2 FNPT
Pressure On
20 psi
Motor Type
Totally enclosed Nonventilated
Standards
NSF Certified
Pump Operation Type
Electric
Flow Rate @ 20 psi
3.4 gpm
Flow Rate @ 0 psi
4.2 gpm
Motor Enclosure
Totally Enclosed Non-Ventilated
Diaphragm Chamber Design
5
Current
15 A
Priming
Self-Priming
Nameplate Voltage
12V DC
Flow Rate (Maximum)
4 gpm
Series
5800
Flow Rate @ 40 psi
2.4 gpm
Media Intake Connection Type
FNPT
Media Discharge Connection Type
FNPT
Housing Material
Polypropylene
Check Valve Material
FKM
Intake Connection Type
FNPT
Discharge Connection Type
FNPT
Pump Technology
Diaphragm
Bypass Pressure
10 psi
Fluid Head Material
Polypropylene
Motor Speed - Maximum
2,200 RPM
Electrical Connection Type
Two-Pin Molded Connector
Phase
Single
Gasket Material
FKM
Includes Gearbox
No Gearbox Included
Number of Diaphragms
1
Pump Control Type
Bypass
Includes Regulator
No Regulator Included
Discharge Pressure - Maximum
45 psi
Chemical Compatibility
Fertilizer, Herbicide
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Self-Priming Lift - Maximum
12 ft
Pump Drive Configuration
Electric Motor Unit
Media Temperature - Maximum
140 Degrees F
Includes Heat Sink
Heat Sink Included
Feet of Head (Maximum)
103.8 ft
Power Source
Electric
Full Load Current
22.5

Description

Diaphragm Pump, Operating Pressure (Maximum) 45 psi, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material FKM, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 4 gpm, Housing Material Polypropylene, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch No, Standards NSF Certified, Feet of Head (Maximum) 103.8 ft
